  6. 3M™ Scotchlok™ Pin Non Insulated, 50/bottle, MU10-55PX-A, 500/Case

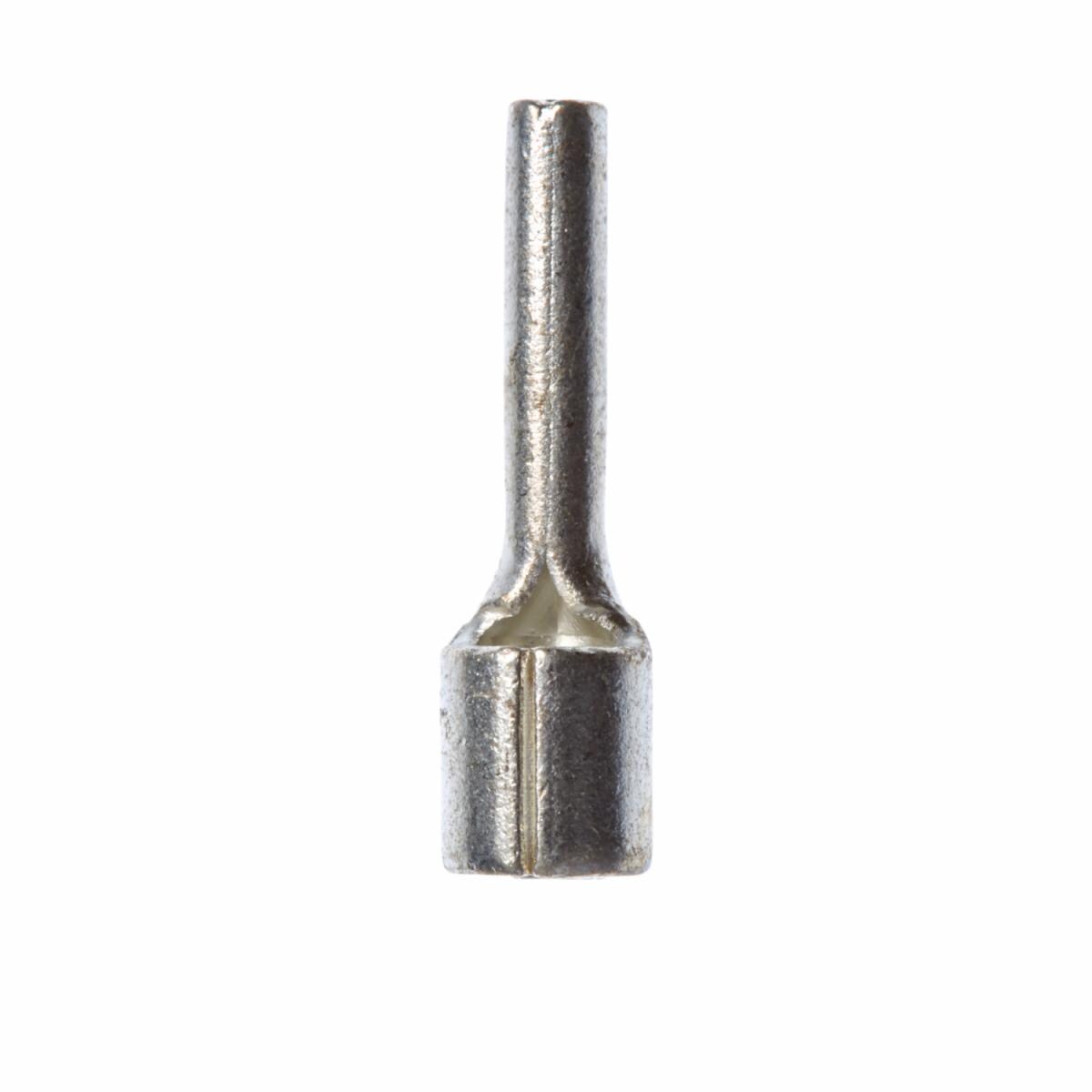

3M™ Scotchlok™ Pin Non Insulated, 50/bottle, MU10-55PX-A, 500/Case

Part Number MU10-55PX-A3M ID 80611464001UPC 00051128587546
  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Beveled mouth offers easy insertion of wires
  • Provides quick connection for set screws or clamps that are used to make electrical contact
  • Accommodates wire sizes 12 to 10 AWG
 More...
View all details
For industrial/occupational use only. Not for consumer sale or use.
Specifications
Attribute Name
Value
Barrel Length (Imperial)
0.25 Inch
Barrel Style
Butted
Brand
Scotchlok™
Connection Width (Imperial)
0.11 in
Connection Width (Metric)
2.794 mm
Insulation Material
Non-Insulated
Maximum Conductor Size (Imperial)
10 AWG
Minimum Conductor Size (Imperial)
12 AWG
Minimum Order Quantity
50
Overall Length (Imperial)
0.81 in
Packaging
50 per bottle
Pin Diameter
0.11 in
Pin Length (Imperial)
0.47 in
Pin Length (PL)
0.55 Inch
Solution for
Wireless Network: Infrastructure Accessories
Terminal Type
Pin
Units per Case
500
Details
  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Beveled mouth offers easy insertion of wires
  • Provides quick connection for set screws or clamps that are used to make electrical contact
  • Accommodates wire sizes 12 to 10 AWG
  • Made of copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 50/carton, 500/case

3M™ Scotchlok™ Pin Terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, butted-seam barrel with a beveled mouth that guides the wire into position and withstands a maximum temperature of 347 degrees F (175 degrees C). Copper construction offers good conductivity and a tin-plated finish resists corrosion.

3M™ Scotchlok™ Pin Terminal has a non-insulated, butted-seam barrel with a beveled mouth to guide the wire into position easily. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
