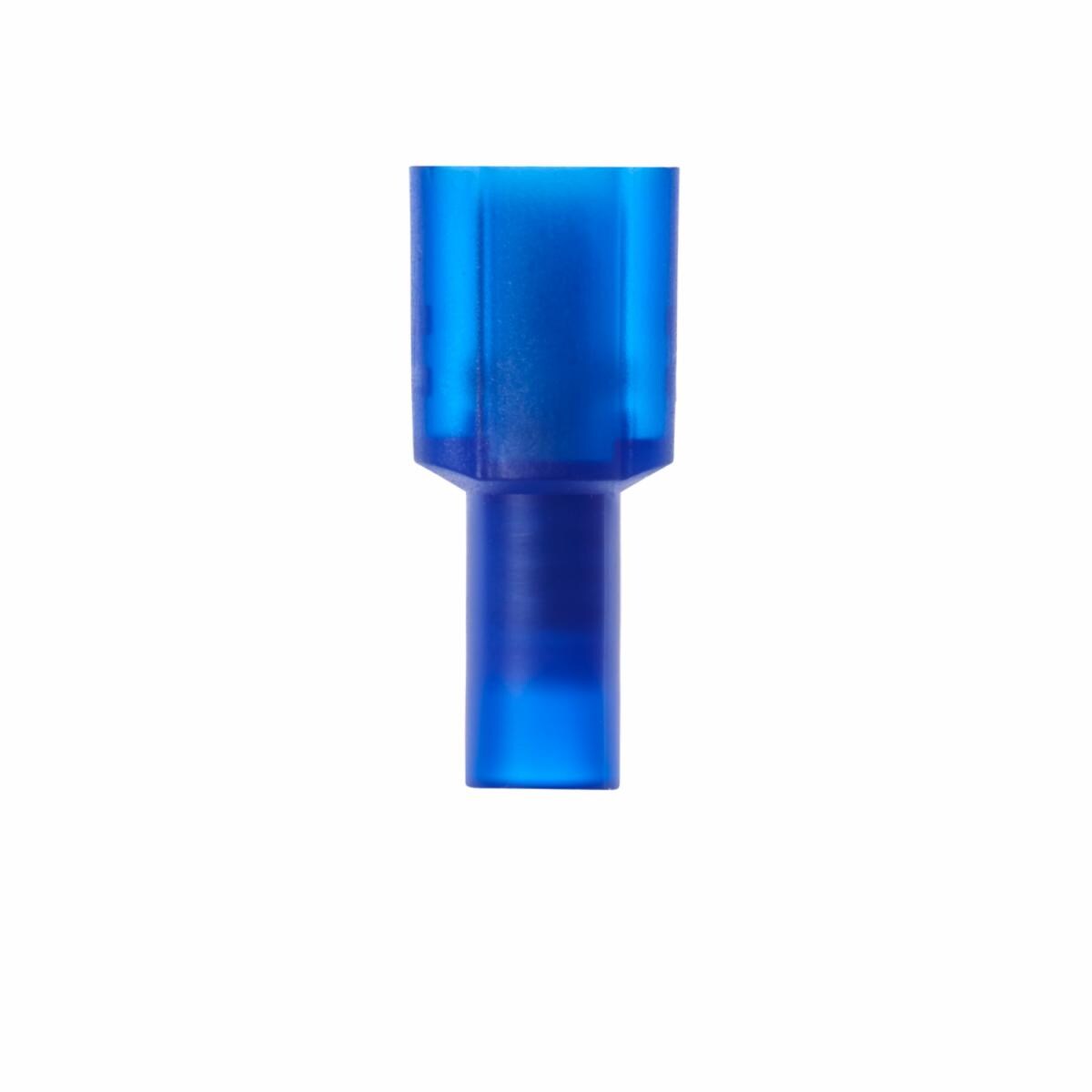

3M™ Highland™ Nylon Fully Insulated Male Disconnect Terminal MTI14-187Q, AWG 16-14, 25/bag, 10 Bags/Case

Part Number MTI14-187Q3M ID 7010321021UPC 00051128600238
  • Nylon-insulated, butted-seam barrel allows for easy insertion of wires
  • This male disconnect terminal offers excellent holding force
  • Allows for quick and easy disconnect of wires
 More...
View all details
View Legal Disclaimer
For industrial/occupational use only. Not for consumer sale or use.
Specifications
Attribute Name
Value
Barrel Style
Butted
Brand
Highland™
Connection Width (Imperial)
0.187 in
Connection Width (Metric)
4.75 mm
CSA File Number
LR22190
Disconnect Type
Male
Fastener Orientation
Male
Insulation Material
Nylon
Maximum Conductor Size (Imperial)
14 AWG
Maximum Conductor Size (Metric)
2.5 mm²
Minimum Conductor Size (Imperial)
16 AWG
Minimum Conductor Size (Metric)
1.5 mm²
Packaging
25 per bag
Pad Width
0.187 in
RoHS 2011/65/EU Compliant
Yes
RoHS EU Comments
RoHS 2011/65/EU compliant without exemption
Solution for
Wireless Network: Infrastructure Accessories
Tab Width
0.187
Terminal Style
Fully Insulated
Terminal Type
Disconnect
UL File Number
E70512
Details
  • Nylon-insulated, butted-seam barrel allows for easy insertion of wires
  • This male disconnect terminal offers excellent holding force
  • Allows for quick and easy disconnect of wires

3M™ Highland™ Nylon Fully Insulated Butted Seam Male Disconnect offers superior holding force while allowing for quick and easy disconnect. The terminal has a fully insulated, nylon, butted-seam barrel. It withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

3M™ Highland™ Nylon Fully Insulated Butted Seam Male Disconnect attaches to the mating part with a tongue that slips over the female tab. The butted-seam barrel of this terminal provides electrical contact after crimping. The flared nylon sleeve is abrasion-resistant and fully insulated with a stepped design to ensure mistake-proof crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
