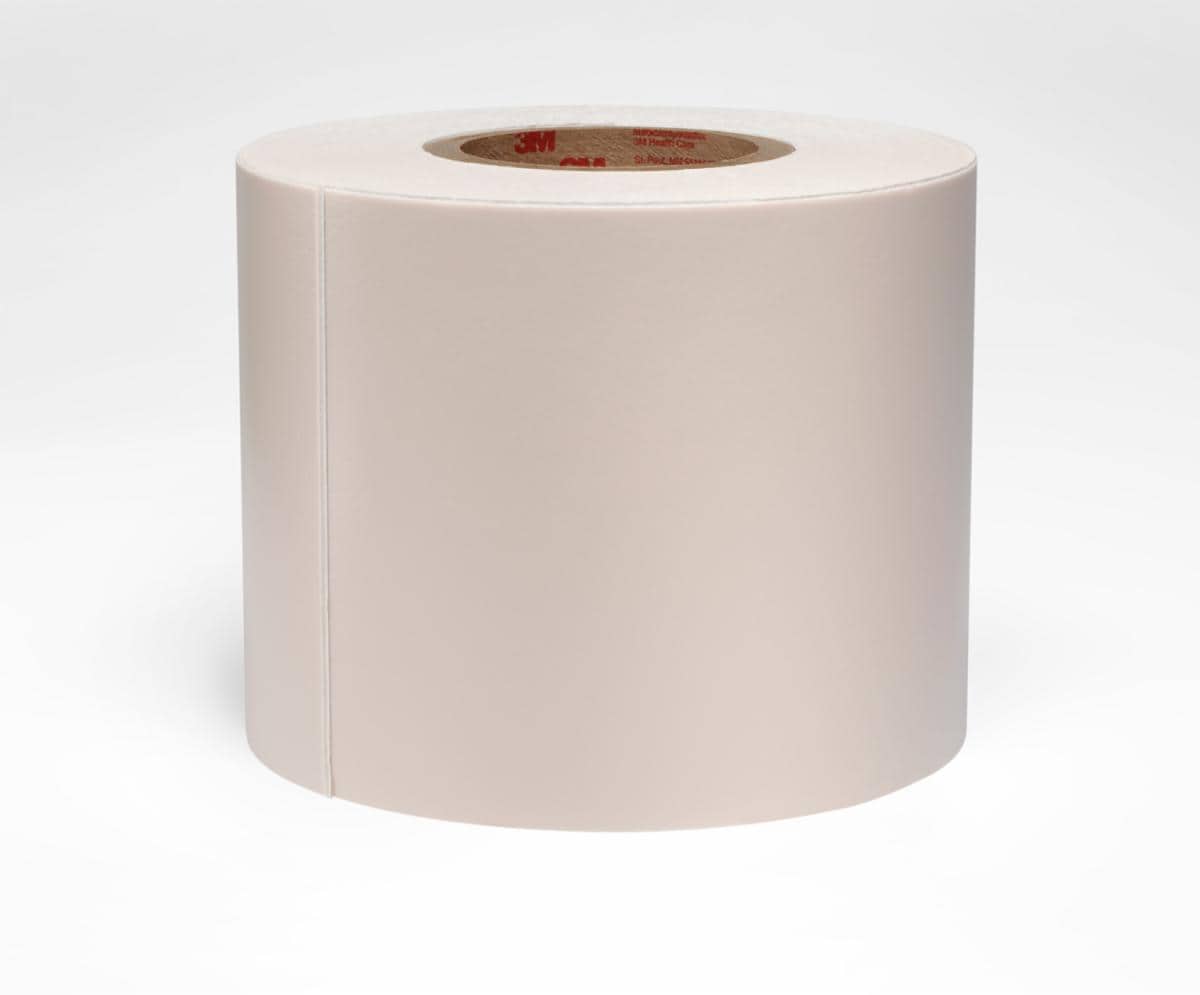

3M™ CoTran™ Polyethylene Foam Tape, 9773, Configurable

3M ID 70000039183
  • Tan
  • Occlusive
  • Highly conformable
  • High tack pressure sensitive acrylate adhesive
 More...
View all details
Specifications
Attribute Name
Value
Brand
CoTran™
Caliper
37 mils
Caliper (Metric)
940 μm
Color Family
Beige
Elongation CD
250%
Elongation MD
250%
Liner Caliper (Metric)
127 μm
Liner Caliper (mils)
5 mil
Liner Release
≤60 g/in
Liner Release (Metric)
≤0.6 N/25.4 mm/in
Overall Length (Imperial)
145 yd
Overall Length (Metric)
132 m
Overall Width (Imperial)
48 in
Overall Width (Metric)
121.92 cm
Product Color
Tan
Product Type
Tape
Sample Roll
6 in x 25 yds
Sample Roll (Metric)
15 cm x 23 m
Tensile CD
3.5 lbs/in
Tensile CD (Metric)
15.6 N/25.4 mm
Tensile MD
3.5 lbs/in
Tensile MD (Metric)
15.6 N/25.4 mm
Details
  • Tan
  • Occlusive
  • Highly conformable
  • High tack pressure sensitive acrylate adhesive

This pigmented, closed cell foam tape has quick-stick properties for good initial adhesion.

Design your drug delivery solution with the leading transdermal component supplier. We'll help you select the backing, liner, membrane or tape best suited to your formulation and application.
