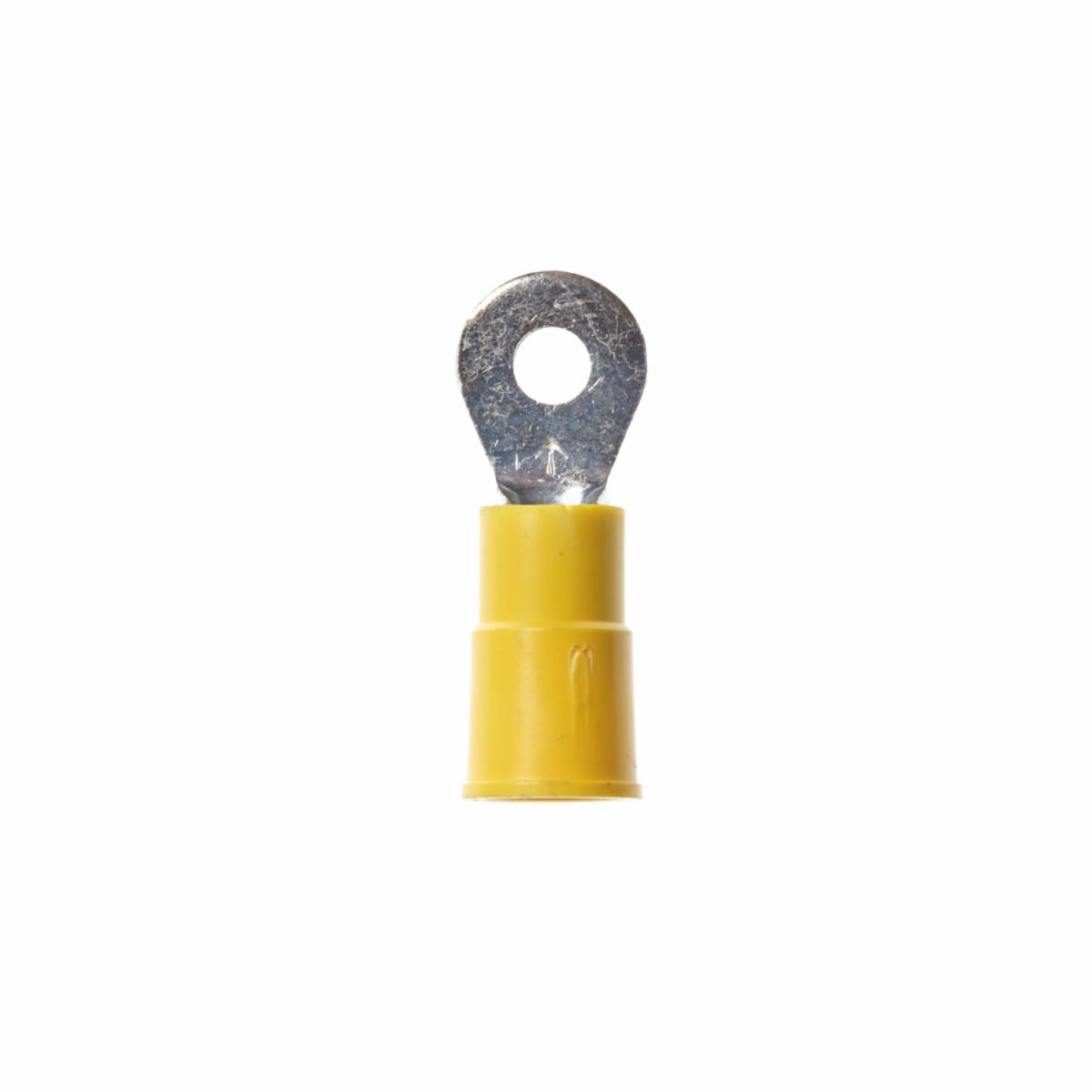

3M™ Highland™ Vinyl Insulated Ring Terminal RV10-8Q, AWG 12-10, 25/bag, 10 Bags/Case
- Part Number RV10-8Q
- 3M ID 7000133675
- UPC 00051128600375
Details
Highlights
- Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
- Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
- Standard-style ring tongue fits around the stud
- Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
- Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
- 600V-rated for building wire and 1000V for signs, fixtures or luminaires
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
- 25/bag
3M™ Highland™ Vinyl Insulated Butted Seam Ring Tongue terminals ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
A ring is the standard style of tongue. The safest and most reliable; it cannot be removed unless mounting screw is removed.
