  3. 3M™ Cold Shrink QT-III Termination Kit 7673-S Series for 69/72.5 kV

3M™ Cold Shrink QT-III Termination Kit 7673-S Series for 69/72.5 kV

3M ID EEBGHAR000636
  • A better compact design makes installations easier in restricted spaces
  • The cold shrink delivery system makes installation easy – just slide the termination sub-assembly over the prepared cable and unwind the core to shrink in place
  • Accommodates all cable lug designs including hexagonal or deep indent crimping technologies, plus a variety of mechanical sheer-off connecting technologies
  • For cables with a maximum temperature rating of 105 degrees C and an emergency overload rating of 140 degrees C
 More...
View all details

Questions? Ready to get started?

For questions or technical help, please contact us by phone at: 1-800-245-3573 or submit an inquiry.

Details
  • A better compact design makes installations easier in restricted spaces
  • The cold shrink delivery system makes installation easy – just slide the termination sub-assembly over the prepared cable and unwind the core to shrink in place
  • Accommodates all cable lug designs including hexagonal or deep indent crimping technologies, plus a variety of mechanical sheer-off connecting technologies
  • For cables with a maximum temperature rating of 105 degrees C and an emergency overload rating of 140 degrees C
  • 7673-S Series terminations conform to IEEE 48 Class 1 requirements for 69kV, 350kV BIL outdoor applications and to IEC60840 for 72.5 kV, 325kB BIL outdoor applications
  • Available with either 8 skirts or 10 skirts for areas with higher contamination
  • A complete termination assembly that is pre-stretched and loaded on a support core
  • Hi-K stress control and high dielectric constant material minimize surface stress by distributing the electrical stress over the entire insulator surface
  • Silicone rubber material works with all common solid dielectric cables, such as cross-linked polyethylene (XLPE), ethylene propylene rubber (EPR) or polyethylene (PE)
  • Installation temperature range of -4 degrees F to 122 degrees F (-20 degrees C to 50 degrees C)

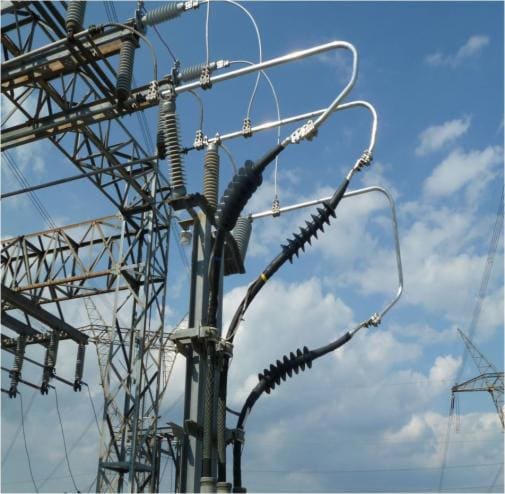

For 72.5 kV Class terminations, trust in 3M Cold Shrink QT-III Termination Kits 7673-S Series. Part of 3M’s Core Technology Platform, the 3M 7673-S Series kits lets you make safe, single-phase terminations on a variety of power cable – from tape shield, longitudinally corrugated (LC) and jacketed concentric neutral (JCN) cable, to tape-over-wire (TOW) and wire-over-tape (WOT) shielded cable.

For areas with higher contamination, the 3M 7673-S-10 Series termination kit provides additional skirts and water-blocking materials to give you a longer creepage path. The complete termination is made up of 4 sub-assemblies: the Silicone Rubber Skirted Stress Control Assembly, Hi-K Stress Control Adapter Assembly, Silicone Rubber Lug Seal Assembly and Silicone Rubber Ground Seal Assembly. Following installation, the support cores can be recycled. When the job requires a cold shrink delivery system, you need the 7673-S Series 3M Cold Shrink QT-III Termination Kit. Our cable accessory products are 100% factory-tested and backed by our strong reputation.

Kit Contents: Each kit contains sufficient quantities of the following materials as appropriate to make one single-phase termination (lug not included unless requested in advance).

- Silicone Rubber Skirted Stress Control Assembly
- Hi-K Stress Control Adapter Assembly
- Lug Seal Tube
- Lug Seal Tube
- Ground Seal Tube
- Ground Strap Assembly
- Constant Force Springs
- Tubes 3M™ Red Compound P55/R (Non-Silicone Grease)
- Scotch Electrical Shielding Tape 24
- 3M™ Scotch-Seal™ Mastic Sealing Tape 2229
- 3M™ EMI Copper Foil Shielding Tape 1181
- Scotch Vinyl Electrical Tape Super 88
- 3M™ Cable Cleaning Pads CC-3
- Scotch® Self-fusing Silicone Rubber Electrical Tape 70
- Instruction Sheets

Resources


  • NEW 3M Cold Shrink QT-III Termination 7673-S-8

High-Amp Grounding Assembly

Provides high-performance grounding connection

Cold Shrink Silicone Rubber End Seal

Provides permanent environmental seal

One-Piece Cold Shrink Silicone Rubber Skirted Insulator Assembly

Coextruded Hi-K/Insulation reduces surface stress

Cold Shrink Slicone Rubbing Top Seal

Provides permanent environmental seal

Sealing Mastic

One-Piece Cold Shrink Semi-Con/High-K Adapter

Ensures uniform stress distribution

The 3M™ Cold Shrink QT-III Terminations Kit 7673-S-8 Series are designed to terminate 69 kV, 650 mil solid dielectric, tape shield, longitudinally corrugated (LC), jacketed concentric neutral (JCN), tape-over-wire (TOW), or wire-over-tape (WOT) shielded power cable. Covering a conductor size range of 350 kcmil-3000 kcmil (185-1500 mm2). See the selection table for detailed sizing information.
