3M™ Flexile Acoustic Material FAB1210

3M ID B50053880123M Product Number FAB1210
  • High acoustic performance material with 19.5 mm thickness
  • Absorber and barrier performance in a non-molded single layer
  • Excellent acoustic performance at 500 Hz and above
  • Excellent to address tire and road noise (600 – 1200 Hz)
 More...
View all details

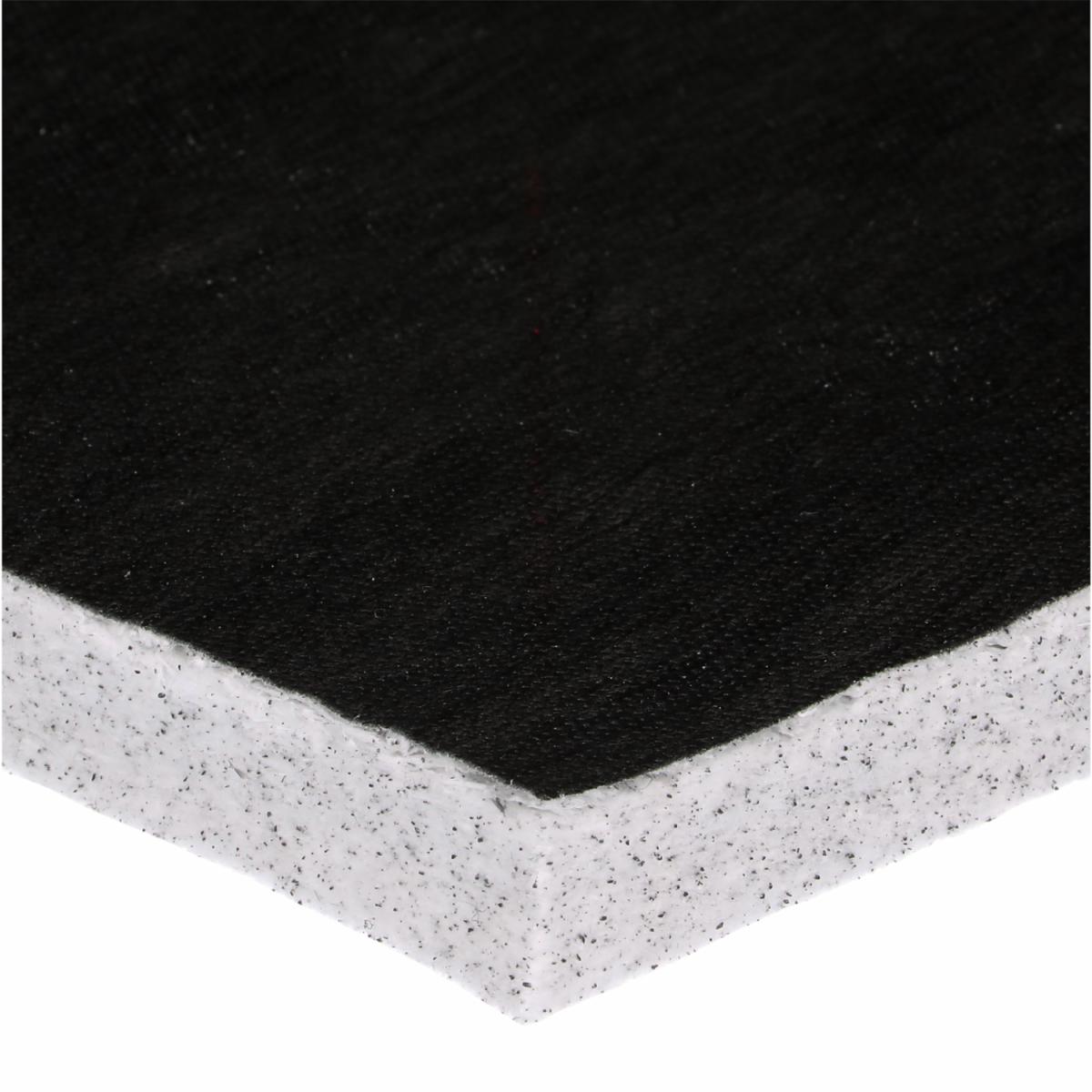

  • FAB1210 view from the top

    3M™ Flexile Acoustic Material FAB1210

    Solve current and future noise, vibration and harshness (NVH) challenges by leveraging the synergy between acoustic particles and a fibrous structure in a single, non-molded layer.

Details
  • High acoustic performance material with 19.5 mm thickness
  • Absorber and barrier performance in a non-molded single layer
  • Excellent acoustic performance at 500 Hz and above
  • Excellent to address tire and road noise (600 – 1200 Hz)
  • Lightweight system solution

3M™ Flexile Acoustic Material FAB1210 solves current and future NVH-T challenges by leveraging the synergy between acoustic particles and a fibrous structure to address tire and road noise in a single layer. The thin material has excellent mid frequency absorption without sacrificing performance in high frequencies.

  • sound wave icon

    Absorber + barrier performance in a single layer

    3M FAB1210 combines multiple NVH acoustic properties in a single, non-molded material. It can potentially eliminate molding steps – and the costs associated with molding – for an overall lightweight system solution. 3M FAB1210 offers the opportunity to replace multi-layer NVH solutions, such as, EVA and foam, with a single layer material.

  • graph with a check mark icon

    High acoustic performance

    3M FAB1210 outperforms typical absorbers in the mid frequency range (500-2000 Hz) without sacrificing performance at higher frequencies (>2000Hz). This makes it excellent to address externally generated mid-to low frequency noise less at than 1200Hz. Typical noise in this region may stem from tire, road or stereo boom. By addressing these difficult to treat range, we help OEMs meet NVH requirements and increase passenger comfort by decreasing tire and road noise.

  • feather icon

    Thin and lightweight

    At 19.50 mm, 3M FAB1210 is excellent for use in space constrained areas that require high acoustic performance – allowing you more flexibility in your designs and the potential to increase cabin space. Our material is lighter weight than most typical barriers, which can help increase fuel/range efficiency.

  • Futuristic car
  • Recommended applications
    • Interiors
    • Under Carpet
    • Door
    • Headliner
    • HVAC Duct
    • Center Console
    • Quarter Panel
    • Wheelhouse
    • Instrument Panel
    • Wheel Arch Liner
    • Cargo Floor
