3M™ Transparent Conductor Film 3M23-MS, 450 mm x 450 mm, 5 Ea/Case

  • 3M ID 7100329658
  • UPC 08887862982116

High transparency (>80% open area)

Proprietary copper grid conductive layer

Implemented in low-profile antennas achieving VSWR, PIM and gain requirements that are typical for non-transparent antennas

View more details
Frequently viewed resources
Tech Data Sheet (PDF, 141KB)
Purple to blue gradient
Hidden in plain sight

Most wireless data originates or terminates indoors. From restaurants to lobbies, stadiums to offices, antennas that blend in with their surroundings can help enable high-speed 5G networking.

Details

Highlights
  • High transparency (>80% open area)
  • Proprietary copper grid conductive layer
  • Implemented in low-profile antennas achieving VSWR, PIM and gain requirements that are typical for non-transparent antennas
  • Flexible PET substrate
  • High efficiency (<0.05 ohms per square sheet resistance)
  • High power capability (up to 50W)
  • Grid performance similar to solid copper
  • High adhesion, which allows for a small bend radius
  • Darkening treatment for all copper surfaces

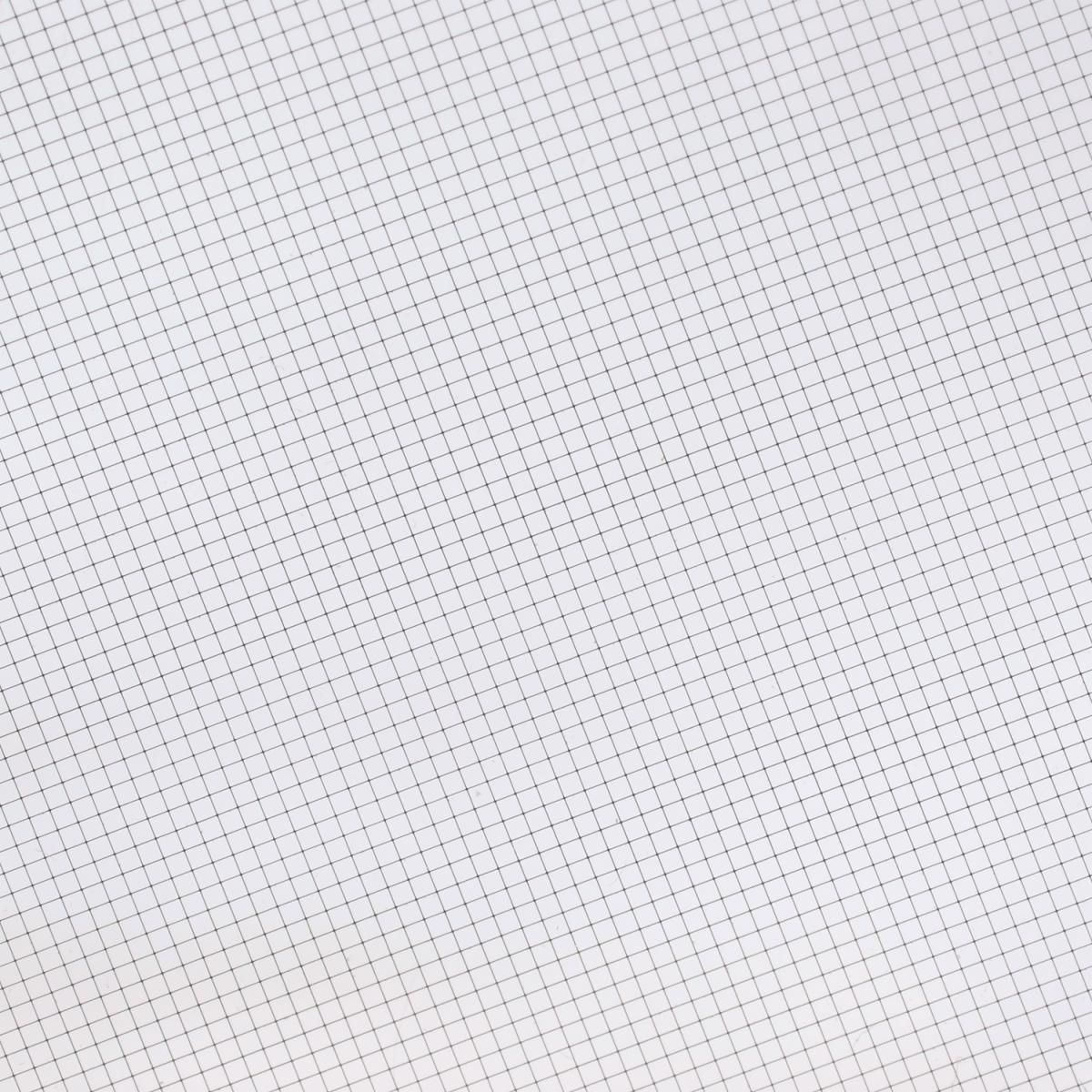

3M™ Transparent Conductor Film is a thin, transparent conductive film equipped with a copper grid as the conductive layer. With high light transmittance, low sheet resistance and excellent flexibility, this film has been demonstrated in inconspicuous sub-6GHz antenna products for indoor and outdoor use. This conductive transparent film from 3M helps enable high-power designs with low surface electrical resistance. Its flexible PET substrate allows for application over surfaces or lamination to a rigid support (e.g., a window). It is available as a post-patterned sheet format using customer-supplied antenna pattern design.

Clear and comparable performance

In lab and real-world tests versus a solid-plated-copper reference antenna, antennas using 3M™ Transparent Conductor Film demonstrated strong performance across a range of frequency bands. Contact 3M for detailed testing data.

  • Line graph of return loss where 3M Transparent Conductor Film performs similarly to solid-copper-plated antennas.

    Return loss

    Return loss testing found that antennas built with 3M™ Transparent Conductor Film had very similar return loss performance to solid-copper-plated antennas.

  • Box and whisker chart of Wi-Fi 6 performance where 3M Transparent Conductor Film performs comparably to copper across 2.4GHz, 5GHz and 6GHz frequency bands

    Wi-Fi 6 field trial

    Antenna performance using 3M™ Transparent Conductor Film was compared with copper across the 2.4GHz, 5GHz and 6GHz frequency bands. Across 23 test sites at a range of distances and line-of-sight conditions, the antenna demonstrated comparable signal strength.

Recommended applications: In building wireless, IoT, and Outdoor wireless

Typical properties

Resources

Frequently asked questions

Historically, there have been several major challenges to creating transparent antennas. First, many technologies cannot support adequate power levels. Since standard PIM testing is performed at 2 x 43 dBm, antennas unable to tolerate this level of power are difficult to characterize for PIM. Second, some conductive film technologies inherently produce a high level of PIM. Third, transparent antenna technologies like ITO cannot provide the high conductivity required for high-gain antennas without becoming yellowed and subject to cracking.

3M analyzed four major technologies for making transparent antennas and concluded that a "metal mesh" approach was the solution that best enabled high power levels and high conductivity within acceptable levels of PIM and without yellowing and cracking.

3M™ Transparent Conductor Film is a thin, transparent conductive film equipped with a copper grid as the conductive layer. 3M™ Transparent Conductor Film Assembly includes 3M™ Transparent Conductor Film laminated to a solid substrate. Depending on the application, either may be appropriate as an antenna component.

Multiple sample formats of 3M™ Transparent Conductor Film are available depending on the particular application. 3M can also supply samples of 3M™ Transparent Conductor Film in a 3M-designed antenna to enable visual, mechanical or thermal testing. Please visit 3M.com/transparentantenna and tell us a bit about your project so our team can understand your application and prepare a sampling plan. Allow a minimum of 2-4 weeks for review and processing.
