3M™ Epoxy and Copper Foil Laminate CU-10S

  • 3M ID B5005158011

Dead soft 1-ounce (1.4-mil) copper foil backing for excellent shielding effectiveness with good solderability.

Epoxy film laminate with high dielectric strength that is UL94 V-0 flammability rating for dependably insulating shield from neighboring circuits.

Easy to handle and die cut complex shapes.

View more details
Frequently viewed resources

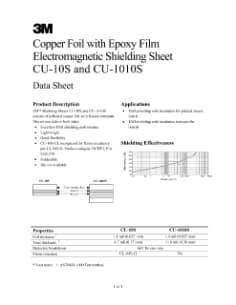

Tech Data Sheet (PDF, 143KB)

Details

Highlights
  • Dead soft 1-ounce (1.4-mil) copper foil backing for excellent shielding effectiveness with good solderability
  • Epoxy film laminate with high dielectric strength that is UL94 V-0 flammability rating for dependably insulating shield from neighboring circuits
  • Easy to handle and die cut complex shapes

3M™ Epoxy and Copper Foil Laminate CU-10S is a 7.2 mil laminate of 1.4 mil softened copper foil to 3.6 mil flame-retardant epoxy film that is bonded with 1.6 mil adhesive. There is NO adhesive on the laminate for bonding to an application substrate.
