3M™ Serial Attached SCSI (SAS) Connector, SBR-RA-29-S-ML, SBR Series

  • 6.0 gbps input/output connector for backplane applications
  • Two contact mating levels for early-mate and late-break allows "blind mating" or "hot swap" applications
  • Capable of accepting HDD fitted with SAS or Serial Advanced Technology Attachment (SATA) Header
  • Designed for use with SAS-1.1 plug connectors
 More...
View all details
Find A Part
spinner
Typical Properties
Attribute Name
Value
Tech Sheet Number
TS-2180
Details
  • 6.0 gbps input/output connector for backplane applications
  • Two contact mating levels for early-mate and late-break allows "blind mating" or "hot swap" applications
  • Capable of accepting HDD fitted with SAS or Serial Advanced Technology Attachment (SATA) Header
  • Designed for use with SAS-1.1 plug connectors
  • Compatible with drives compliant to SFF-8223, SFF-8323, and SFF-8523
  • See Regulatory Information Appendix (last page of Tech Data Sheet) for chemical compliance information

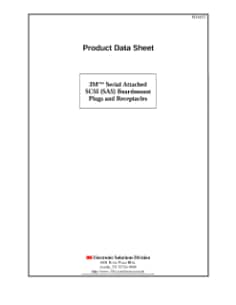

  • For more information refer to Data Sheet TS2180 (TS-2180)

Boardmount Right Angle, Through-Hole Receptacle
