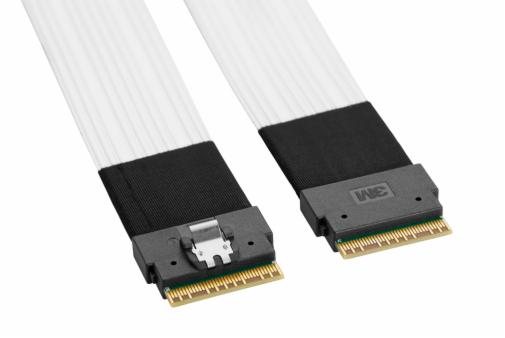

3M™ SlimLine Twin Axial Cable Assembly, SFF-8654, 8ES8, x8, 85ohm, 31AWG
- 3M ID B5000000277
Details
Highlights
- x8 configuration
- SFF-8654 straight and right angle
- Signal wire size 31 AWG
- Standard lengths 0.5 m, 0.75 m, and 1 m
- PCIe (85 ohm) applications
- Custom folded assemblies available
- Thin ribbon cable construction allows for dense routing, routing options within a case
- Lower profile than other similar AWG twin axial cables
- Save time and cost during assembly, reduced SKU count
- Foldable ribbon construction enables unique packaging configurations
- Extremely tight bend radius
- See 3M.com/SDS for regulatory information
- For more information, refer to the standard product drawing: x8, 85 Ohm, 31 AWG (24 pair, 0 sidebands) 78-5100-2675-6 (78510026756)
3M™ SlimLine Twin Axial Cable Assembly (SFF-8654), 8ES4 Series – x4, 85 ohm, 30 AWG is ideal for PCIe applications.
3M™ SlimLine Twin Axial Cable Assemblies (SFF-8654) include x4, x8, 30 AWG, 31 AWG, 85 ohm, 100 ohm and straight / right angle configuration options designed for SAS and PCIe applications.
Typical properties
Resources
Similar products
| Application | High-speed Data Transmission | |
| Characteristic Impedance | 85 ohms | |
| Connector Style (End A) | Plug | |
| Connector Style (End B) | Plug | |
| Connector Type (End A) | ST | |
| Connector Type (End B) | ST | |
| Form Factor | SlimLine | |
| Number of Cable Assembly Lanes | x8 | |
| Number of Conductors | 72 | |
| Product Series | 8ES8 | |
| Product Usage | Backplane/Midplane, Board-to-board, Mid-board Cables | |
| Protocol | PCIe© | |
| Standard Size | 0.75 m,1.0 m,0.5 m | |
| Tech Sheet Number | TS-2675 | |
| Wire Gauge (Imperial) | 31 AWG | |
| eClass 14 Classification Group | 19051003 |
