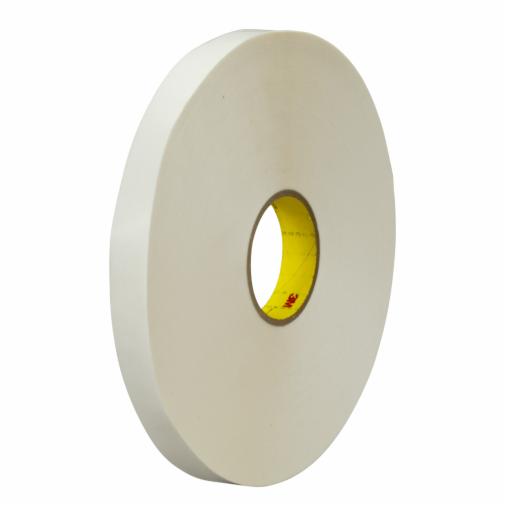

3M™ Double Coated Film Tape 9578

3M ID 700061781673M Product Number 9578UPC 00021200243707
  • Polypropylene carrier increases dimensional stability for easy handling
  • 60 lb. densified kraft paper liner supports applications like die-cutting
  • Hand tearable for easy use
  • Good low temperature performance and peel strength on many surfaces
 More...
View all details
For industrial/occupational use only. Not for consumer sale or use.
Details
  • Polypropylene carrier increases dimensional stability for easy handling
  • 60 lb. densified kraft paper liner supports applications like die-cutting
  • Hand tearable for easy use
  • Good low temperature performance and peel strength on many surfaces

3M™ Double Coated Film Tape 9578 is a medium tack double coated film tape with pressure sensitive 3M™ Acrylic Adhesive 400, a medium firm adhesive with quick stick. It offers a balance of high initial adhesion and good holding power for die-cutting, web splicing and general purpose bonding applications.

Made for Die-Cutting
3M™ Double Coated Tape 9578 is a 4.0 mil double coated tape constructed on a hand-tearable translucent polypropylene carrier coated on both sides with 3M™ Adhesive 400. The thin, tough, polypropylene carrier between the adhesive layers improves the handling and strength of the tape. A hard, smooth 54 lb. densified kraft paper release liner provides reliable performance for industrial applications like die-cutting and automated dispensers. It works exceptionally well in low temperatures, with an operating range of -60° to 250°F (-51°C to 121°C). It provides medium adhesion to metals, HSE and LSE plastics, and foam, and shows medium resistance to chemical environments. It also stands up well to humidity.

Recommended Applications

  • Splicing paper, film and foils
  • Core starting
  • Miscellaneous joining and bonding
  • Window label applications

Adhere with Confidence
3M™ Adhesive 400 is a medium-firm pressure sensitive acrylic adhesive system. It features an excellent balance of good initial adhesion (quick stick) and good shear holding power. Shear strength is the measure of pull force directed across the bonded surface, forcing the two surfaces to slide over each other.

Bringing Better Ideas to the Surface through Science and Innovation
In our 3M Industrial Adhesives and Tapes Division, we apply the science of adhesion to deliver innovative solutions that improve the design and manufacturing processes of companies around the world. In the end, our technologies help customers like you deliver competitive products to the market faster and more efficiently.
