Camera Bracket CB01 with 3M™ Acrylic Foam Tape 5314

Camera Bracket CB01 with 3M™ Acrylic Foam Tape 5314

3M Product Number 5314
3M ID B40069705

Tape temporarily fixtures brackets to glass

Maintains uniform gap between bracket and glass during cure time

3M™ Acrylic Foam Tape 5314 offers very high initial adhesion to glass

View more details

Details

Highlights

Tape temporarily fixtures brackets to glass
Maintains uniform gap between bracket and glass during cure time
3M™ Acrylic Foam Tape 5314 offers very high initial adhesion to glass
Viscoelastic foam core conforms well even to complex geometries
Engineered for stress relaxation when exposed to high stress loads
Brackets are supplied pre-taped and are ready to use to help improve process efficiency
Tape and hardware system can help to reduce scrap, in-plant labor and inventory costs
Pressure sensitive adhesive feature ensures immediate fixturing of components upon application to glass

Camera Bracket with 3M™ Acrylic Foam Tape 5314 provide a temporary solution for fixturing brackets to glass and helps maintain a uniform gap between the bracket and the glass during the time required for liquid adhesives to cure.

Camera Bracket with 3M™ Acrylic Foam Tape 5314 provides a temporary solution for fixturing camera brackets to glass and helps maintain a uniform gap between the bracket and the glass during the time required for liquid adhesives to cure. 3M™ Acrylic Foam Tape 5314 features two adhesives, one on each side of a 0.76 mm acrylic foam core, designed for robust performance and shear strength on automotive surfaces. Liner side adhesive is formulated for high initial and final adhesion to rigid automotive clear coat systems. Non-liner-side adhesive is excellent for plastics and other common trim materials (adhesion promoter recommended).

Learn more about 3M Automotive Products (PDF, 6.39 Mb)

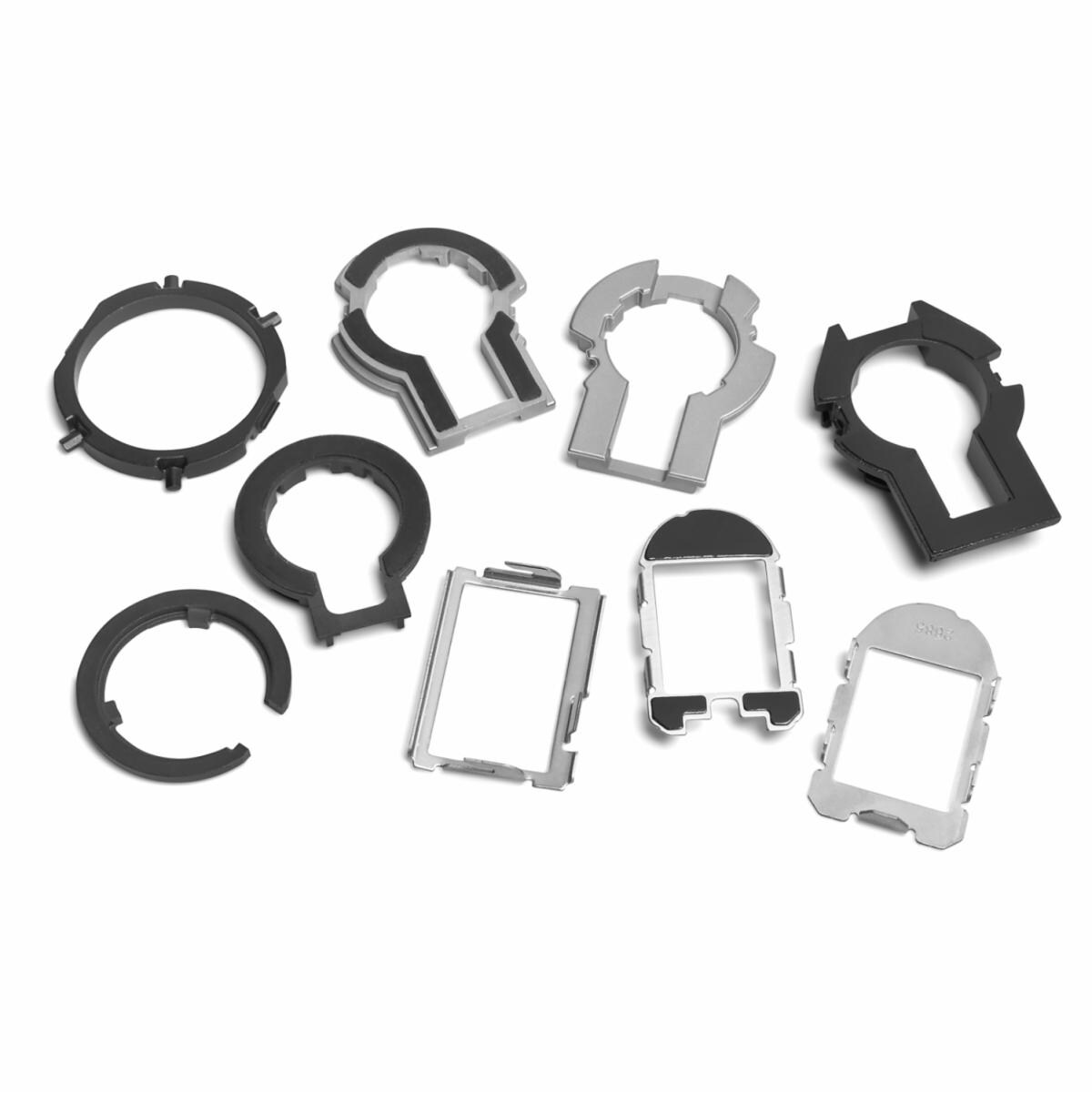

Tape-Attached Hardware
3M supplies automotive components with pre-applied tape for applications throughout a vehicle, including: mounting brackets for sensors and cameras, mirror mounts, locator pins, roof ditch and applique clips. From pressure sensitive adhesive foam tapes to semi-structural tapes, a wide range of tape bond strengths are available for a variety of applications where performance is critical.

Confidence in Your Purchase
3M™ Acrylic Foam Tape 5314 has a 3M branded liner that features a subtle 3M logo marking to provide evidence to the customer that they are receiving the 3M quality they expect from their purchase. The liner makes our tapes easy to identify and difficult to imitate. The proprietary branding technology is designed to help with identification of 3M™ Acrylic Foam Tape. 3M recommends the use of 3M™ Adhesion Promoter with 3M™ Acrylic Foam Tape 5314 for tape-to-part adhesion on all parts, especially plastics such as RIM, TPO, PPO, PP and PC.

Recommended Applications

Narrow body side moldings
Mechanically assisted sill plates
Roof slats
Thin or flexible nameplates

Better Science for Better Adhesion from 3M
Since 1925 when one of our lab assistants invented masking tape, 3M has been applying science to life — developing adhesive products and technologies that help entire industries and individual businesses worldwide. The work that began with a single 3M engineer now spans decades and generations - and all of it goes into each of our products developed for automotive OEM, like Camera Brackets with 3M™ Acrylic Foam Tape 5314.

Learn more about 3M automotive attachment tapes and fasteners
