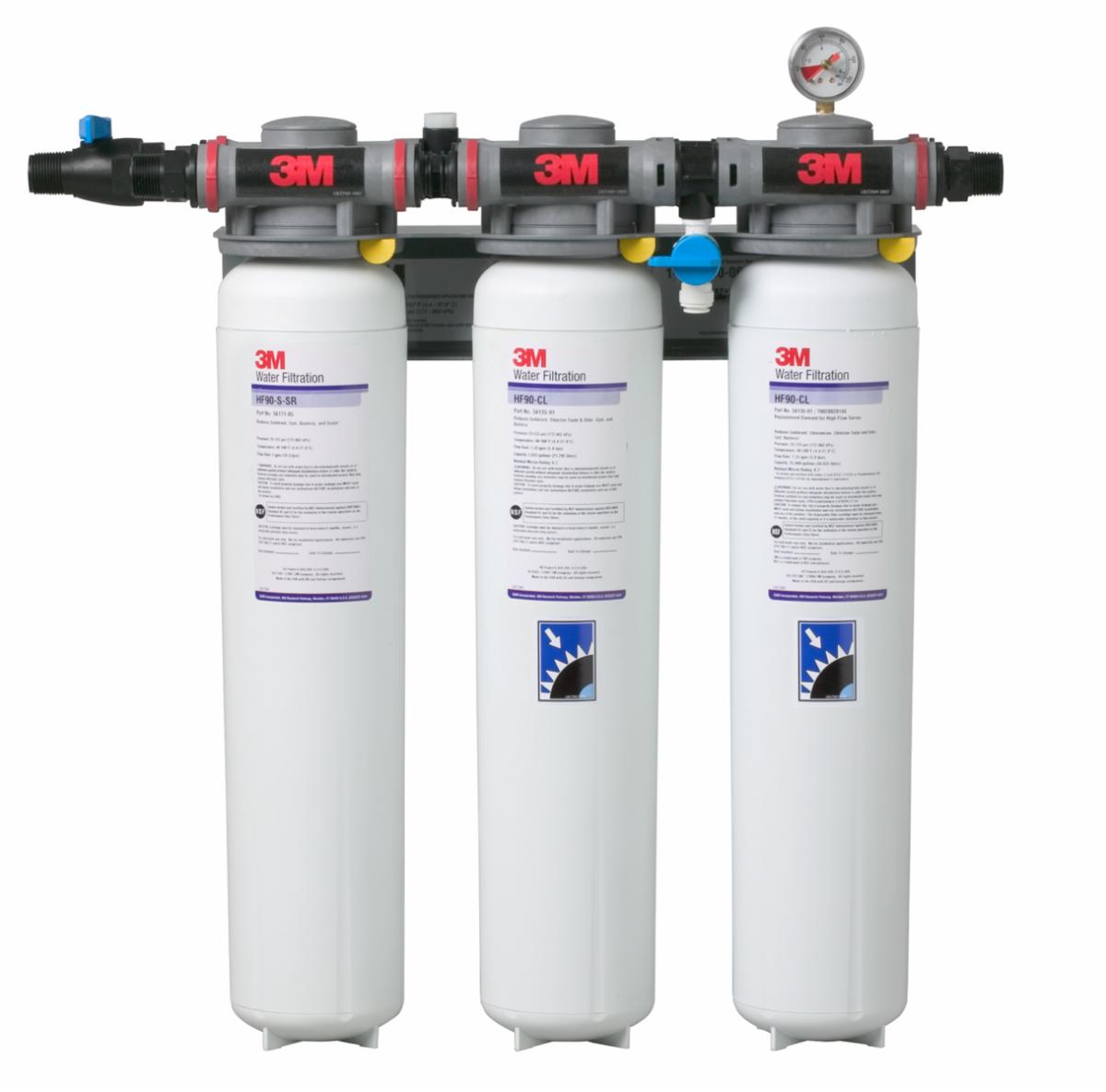

3M™ Dual Flow Series Multi-Equipment Chloramine System

Products
  • Provides consistent high quality water
  • Reduces particulate, chloramine, chlorine taste and odor from incoming water
  • Provides chloramine reduction to help eliminate corrosion damage to water using equipment such as steamers, combi-ovens, coffee and tea brewers, and espresso machines
  • Multi-stage filtration reduces the need for a separate prefilter
 More...
View all details
Reduction Claims
Reduction_Claims
Overall Length (Imperial)
Overall_Length_Imperial
Micron Rating
Micron_Rating
Flow Rate (Imperial)
Flow_Rate_Imperial
Overall Width (Imperial)
Overall_Width_Imperial
Products Available
Available options:
 Reduction Claims, Overall Length (Imperial), Micron Rating, Flow Rate (Imperial), Overall Width (Imperial), Overall Height (Imperial) and Overall Depth (Imperial)
All Options
Close
Specifications
Attribute Name
Value
Brand
3M™
Capacity (Imperial)
12600 Gallon, 28000 Gallon, 70000 Gallon
Capacity (Metric)
105992 l, 264979 l, 47696 l
Capacity by Substance Reduced (Imperial)
12600 gal for Chloramine, 28000 gal for Chloramine, 70000 gal for All Substances, 70000 gal for Chlorine
Capacity by Substance Reduced (Metric)
105992 L for Chloramine, 264979 L for All Substances, 264979 L for Chlorine, 47696 L for Chloramine
Color Family
White
Filter Technology
Integrated Membrane Pre-Activated Carbon Technology (“I.M.P.A.C.T.”)
Fitting Size (Imperial)
0.75 in
Fitting Type
NPT
Flow Rate (Imperial)
2 GPM, 3.34 GPM
Flow Rate (Metric)
12.64 Liter per Minute, 7.57 Liter per Minute
Flow Rate by Substance Reduced (Imperial)
10 GPM for Chlorine, 2 GPM for Chloramine, 3.34 GPM for Chloramine, 7 GPM for Chlorine
Flow Rate by Substance Reduced (Metric)
12.64 l/min for Chloramine, 12.64 l/min for Chloramines, 26.5 l/min for Chlorine, 26.50 l/min for Chlorine, 37.85 l/min for Chlorine, 7.57 l/min for Chloramine
Industries
Commercial
Inlet Outlet Size
3/4" NPT
Maximum Operating Temperature (Celsius)
37.8 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
100 Degree Fahrenheit
Micron Rating
0.2 μm, 5 μm
Model Number
DF260-CLX, DF265-CLX, DF290-CLX, DIDF260-CLX, DIDF265-CLX
Overall Depth (Imperial)
5.38 in, 5.69 in
Overall Depth (Metric)
13.67 cm, 14.45 cm
Overall Height (Imperial)
18.75 in, 24.5 in
Overall Height (Metric)
47.63 cm, 62.23 cm
Overall Length (Imperial)
23.875 in
Overall Length (Metric)
60.64 cm
Overall Width (Imperial)
24.63 in, 25.56 in, 30.31 in, 32 in
Overall Width (Metric)
62.56 cm, 64.92 cm, 76.99 cm, 81.28 cm
Pressure Range (Imperial)
25 - 125 psi
Pressure Range (Metric)
172 - 862 kPa
Product Color
Black, Gray, White
Product Series
DF
Reduction Claims
Bacteria, Chloramine, Chlorine Taste & Odor, Cyst, Particulate, Scale Inhibition, Sediment
Replacement Interval
12 Month
Series
3M™ DF Series
Size (Imperial)
24.63 in x 23.875 in
Size (Metric)
62.56 cm x 60.64 cm
TDS Required
Yes
Temperature Range (Celsius)
4.4 - 37.8°C
Temperature Range (Fahrenheit)
40 - 100°F
Product Details
  • Provides consistent high quality water
  • Reduces particulate, chloramine, chlorine taste and odor from incoming water
  • Provides chloramine reduction to help eliminate corrosion damage to water using equipment such as steamers, combi-ovens, coffee and tea brewers, and espresso machines
  • Multi-stage filtration reduces the need for a separate prefilter
  • Sanitary Quick Change (SQC) encapsulated cartridge design allows for fast and easy cartridge change-outs without the need for a filter wrench
  • Integrated Membrane Pre-Activated Carbon Technology (“I.M.P.A.C.T.”) filtration media on select models4. Combines a membrane with a premium activated carbon block to help provide excellent throughput and cartridge life

The 3M™ Dual Flow Series Filter System provides consistent quality water by reducing particulate, chlorine taste and odor, and chloramine. Excess particulate can cause abrasion and short life on pumps, seals, o-rings, and valves, while excess chlorine and chloramine residual can cause unpleasant tasting beverages. Chloramine is known to be corrosive and can damage any equipment using water such as steamers, combi-ovens, coffee and tea brewers, and espresso machines. Our Sanitary Quick Change (SQC) encapsulated cartridge design allows for fast and easy cartridge change-outs without the need for a filter wrench.

Espresso machine ready to dispense into white mug and saucer
As the main ingredient in many recipes and beverages, water affects the quality, consistency and appearance of any product
Our 3M™ High Flow Series Multi-Equipment Chloramines System for Ice, Coffee & Cold Beverage Applications, Model DF290-CL provides consistent high quality water by reducing particulate*, chlorine taste and odor, chloramines, cyst**, and bacteria1. When used in ice applications, scale inhibition can help to prevent the potentially harmful effects of scale build-up on equipment. Dual Flow system is engineered to provide high flow rates, high capacities, and the benefits of multiple-equipment filtration in a single compact package. Integrated Membrane Pre-Activated Carbon Technology ("I.M.P.A.C.T.") filtration media combines a membrane with a premium activated carbon block to help provide excellent throughput and cartridge life. Our Sanitary Quick Change (SQC) encapsulated cartridge design allows for fast and easy cartridge change-outs without the need for a filter wrench.

Creative Filtration Technology
3M™ systems and cartridges offer a wide range of solutions designed to address many types of water quality concerns. Third-party certifications, such as NSF and WQA, are an advantage provided on many 3M Water Filtration Products. 3M Purification is a known leader in filtration technology recognized for innovation, trust, and quality around the world.

Recipe Quality Water™
Having cleaner and clearer water for your business is both a pleasure and a reassurance that you're giving your customers recipe quality water. With a water filtration system from 3M Purification, you can provide filtered water that may help protect your equipment and your profits. From commercial point-of-entry to dedicated point-of-use water filtration systems, look to 3M Purification to help you find the right solution.

A History of Innovation
For more than a century, 3M has applied innovation and technology to improve our customers' lives and support their business goals. From our headquarters in St. Paul, Minnesota, we serve industrial and commercial customers and consumers in nearly 200 countries. Across thousands of products, the 3M brand represents consistency, superior quality, and value. Our success begins with a culture of creative collaboration that inspires a never-ending stream of powerful technologies and product solutions that make life better. We have an ability to apply our technologies — often in combination — to an endless array of real-world customer needs. Of course, all of this is made possible by the people of 3M and our singular commitment to make life easier and better for people around the world. Toward that end, 3M is committed to providing innovative, cost-effective products that help protect people, equipment and our environment. 3M Purification Inc. (formerly CUNO Incorporated) provides filtration and separation solutions for residential, foodservice, science labs, industrial, marine and other applications.

Discover More 3M Water Filtration Products

*As tested and verified by manufacturer's laboratory.

**Based on the use of cryptosporidium parvum oocysts.

¹As tested with E. Coli ATCC (11229). Tested and verified by manufacturer's laboratory.
