- Advanced Pleat Technology Construction provides up to 50% more surface area than our standard pleated filters
- Absolute-rated filter achieves high product quality
- Graded-porosity multi-layer filter media capture contaminants throughout the filter media to help increase filter life compared to uniform porosity media
- Polypropylene construction is free of adhesives and surfactants and offers low extractable levels when used with compatible solvents
Overall Length (Imperial)
Overall_Length_Imperial
Micron Rating
Micron_Rating
Overall Width (Imperial)
Overall_Width_Imperial
End Modification
End_Modification
53 Products Available
Available options:
Overall Length (Imperial), Micron Rating, Overall Width (Imperial) and End Modification
Specifications
|
Attribute Name
|
Value
|
|---|---|
|
Application
|
Chromatography and Column Protection, Chromatography/Column Protection for Biopharmaceutical Manufacturing, Final Filtration for Particulates in Soft Drinks, Particle Reduction in Bottle Water Manufacturing, Particle Reduction in Distilled Spirits Filtration, RO Protection and Prefiltration, Solids Removal, Solids Removal, Recovery & Reclaim, Turbidity and Particle Control in Soft Drink Water, Water Filtration for Beer Applications, Water Filtration for Wine Applications
|
|
Brand
|
Betafine™, LifeASSURE™
|
|
End Modification
|
0.25" - 0.3125" - 0.375" Tapered Hose Barb, 0.25" MNPT, 0.5" (14 mm) Hose Barb, 1.5" Sanitary Flange, Sanitary, Sanitary Fitting
|
|
Factory Integrity Tested
|
No
|
|
Filter Material
|
Graded Density Polypropylene, Graded-porosity Pleated Polypropylene
|
|
Filter Technology
|
Non-woven
|
|
Filter Type
|
Surface
|
|
Gasket/O-ring Material
|
EPR, Fluorocarbon, Silicone
|
|
Industries
|
Life Sciences
|
|
Maximum Operating Temperature (Celsius)
|
40 Degree Celsius
|
|
Maximum Operating Temperature (Fahrenheit)
|
104 Degree Fahrenheit
|
|
Micron Rating
|
0.2 μm, 0.2 μm ABS, 0.6 μm, 0.6 μm ABS, 1.2 μm, 1.2 μm ABS, 10 μm ABS, 2.5 μm, 2.5 μm ABS, 5 μm ABS
|
|
Overall Length (Imperial)
|
10 in, 2.5 in, 20 in, 30 in, 5 in
|
|
Overall Length (Metric)
|
12.7 cm, 25.4 cm, 50.8 cm, 6.35 cm, 76.2 cm
|
|
Overall Width (Imperial)
|
3 in
|
|
Overall Width (Metric)
|
7.62 cm
|
|
Product Type
|
Capsule
|
|
Series
|
Betafine™ PPG Series
|
|
Units per Case
|
1
|
Product Details
- Advanced Pleat Technology Construction provides up to 50% more surface area than our standard pleated filters
- Absolute-rated filter achieves high product quality
- Graded-porosity multi-layer filter media capture contaminants throughout the filter media to help increase filter life compared to uniform porosity media
- Polypropylene construction is free of adhesives and surfactants and offers low extractable levels when used with compatible solvents

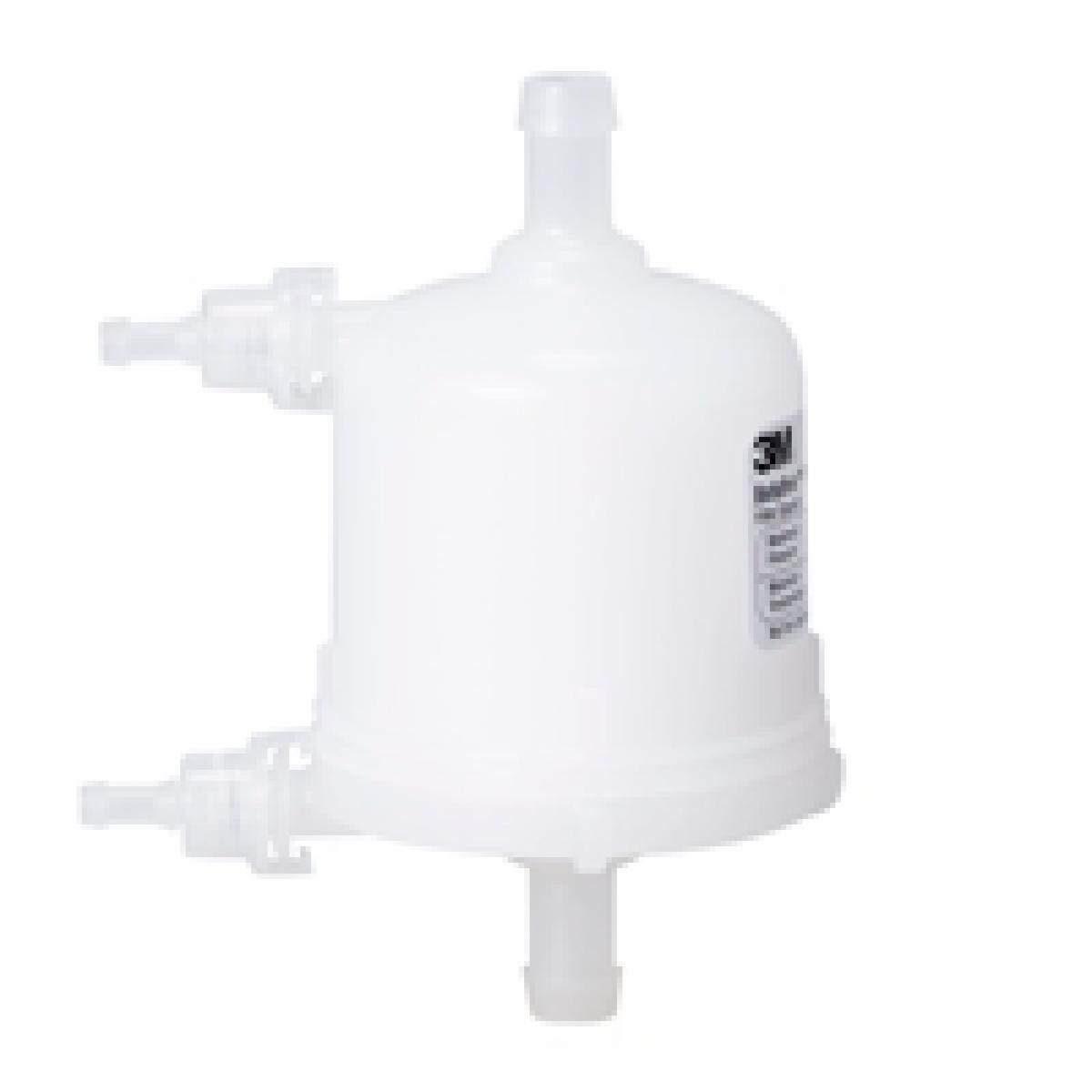

Betafine™ PPG Series Filter Capsule is our absolute-rated, graded-porosity multi-layer 100% polypropylene pleated nonwoven filter with Advanced Pleat Technology (APT). APT increases the usable surface area while allowing the product to be offered in standard sizes. All-polypropylene material offers excellent chemical compatibility with many solvents.
APT construction provides up to 50 percent more filter media (surface area) than our standard pleated filters
The filter media itself is made using absolute-rated, graded-density media. We ship each Betafine PPG filter capsule with a Certificates of Quality detailing the product attributes and qualification testing to help support your documentation requirements.
Betafine removes particles by size - the larger particles by the more open, outer layer; the smaller particles by the tighter, inner layer
The graded-density media structure we incorporate in Betafine™ PPG filters removes particles sequentially by size - the larger particles by the more open, outer layer; and the smaller particles by the tighter, inner layer. The outer layer in essences acts as a prefilter to the inner layer, which then provides the absolute removal specified by the filter rating. This configuration effectively spreads the contaminant throughout the depth of the filter, resulting in high contaminant capacity.
We chose all-polypropylene construction in order to provide broad chemical compatibility. Betafine PPG filters have low extractable levels and are well-suited for process filtration of a wide range of fluids.
Betafine PPG filters can be used for general prefiltration, clarification or as a final filter in appropriate applications.
All product components comply with United States Pharmacopeia (USP) <88> Class VI 70°C Biological Reactivity, in vivo.
Betafine PPG for pharmaceutical, biological and bioprocess manufacturing
Betafine™ PPG Series filter capsules serve a broad range of prefiltration and clarification applications in pharmaceutical, biological and bioprocess manufacturing where economy and reliability are critical.
Recommended applications include:
- Pharmaceutical Fine Chemicals
- Parenterals (SVP and LVP), Opthalmics, Orals, Topicals, Vaccines and Serum
- Membrane Protection
- Blood Plasma Fractionation
- Reagents and Buffers
- Diagnostic fluids
- Cosmetics Manufacturing
- High Purity Water Systems, Air & Gas Pre- and Final filtration
