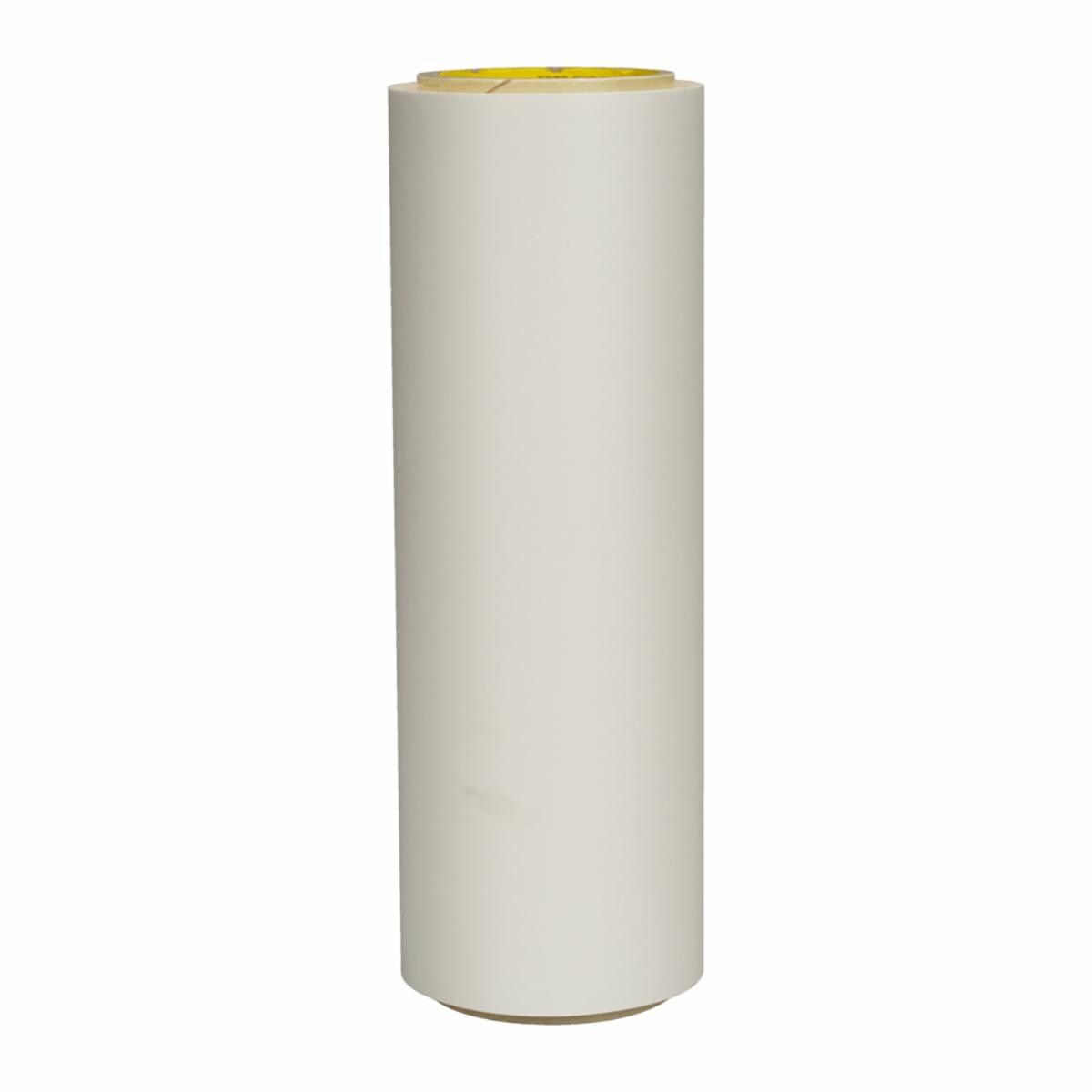

3M™ Adhesive Transfer Tape 9775WL
- | Select product options for IDs.
Specifications
Details
Highlights
- High bond adhesive ideal for use on fabricated foams, plastics, and fabrics
- Exceptional humidity, solvent, chemical and UV resistance helps bond durability
- Performs at temperatures up to 250ºF/121ºC
- 5.0 mils (.13 mm) thick adhesive on a 7.0 mils (.19 mm), 96 lb. white polycoated kraft liner
3M™ Adhesive Transfer Tape 9775WL is designed for permanently bonding plastics, foams, wood and textiles. The adhesive easily flows into crevices and voids without the addition of heat. Minimal pressure is required. This transfer tape features 3M™ Adhesive 300MP, a high tack acrylic that delivers good initial bond and full adhesion within 48 - 72 hours.
Ideal for use on foams, fabrics, wood and plastic
Our 3M™ Adhesive Transfer Tape 9775WL features 5.0 mils (.13 mm) of durable adhesive mounted on a 7.0 mils (.19 mm), 96 lb. white polycoated kraft paper liner. The adhesive is designed to bond to foams, fabrics, wood and most plastic substrates. This adhesive transfer tape resists UV and features good humidity, water, solvent and chemical resistance.
Recommended Applications
- Foam gaskets and general foam bonding
- Bonding of textured and rough surfaces
- Fabric and textile bonding including floorcovering lamination
The design of 3M™ Adhesive 300MP (PDF, 11 Kb) creates a consistently strong bond across a broad range of products up to 250°F (121°C). The easy flow properties allow the adhesive to quickly bond to rough and textured substrates, including, foam, wood, textiles and more, without adding heat. The heavy polycoated kraft paper liner makes this adhesive tape ideal for die cutting and converting processes.
Understanding Adhesive Transfer Tapes
3M adhesive transfer tapes are pressure sensitive adhesives coated on a release liner, without a scrim or carrier. These adhesive tapes are more conformable than double coated adhesive tapes for applications with textured or irregular surfaces. For application, the tape is positioned, adhesive side down, to a surface and the liner is removed, exposing the backside of the adhesive to the joining surface.
Bringing Better Ideas to the Surface through Science and Innovation
In our 3M Industrial Adhesives and Tapes Division, we apply the science of adhesion to deliver innovative solutions that improve the design and manufacturing processes of companies around the world. In the end, our technologies help customers like you deliver competitive products to the market faster and more efficiently.
Click here for more information on 3M Design Solutions (PDF, 20 Mb).
Pressure Sensitive Adhesive properties are frequency and temperature sensitive. 3M has developed Material Data Cards (MDCs) for common 3M PSAs for use with many commercially available FEA software applications. Learn more.
