Standard Abrasives™ Silicon Carbide Overlap Disc

Standard Abrasives™ Silicon Carbide Overlap Disc

Options available
| Select product options for IDs.

Overlapped construction compresses for contact with internal radii, holes, and cylinder walls

Sets of 2 discs are used for push applications

Sets of 4 discs are used for push/pull applications

View more details

Frequently viewed resources

Safety Data Sheet (PDF, 0B)

Specifications

Details

Highlights

Overlapped construction compresses for contact with internal radii, holes, and cylinder walls
Sets of 2 discs are used for push applications
Sets of 4 discs are used for push/pull applications
Stacked discs supply a firm, aggressive cut
Useful for light to medium deburring, polishing, cleaning, blending and chamfering applications
Effective on stainless steel, rubber, plastic and composites
Cloth backing provides added durability to resist tearing and fraying
Compatible Standard Abrasives™ Mandrels are available separately

The Standard Abrasives™ Silicon Carbide Overlap Disc compresses when entering a hole or cylinder to provide coverage of inside diameters. Used for push and push/pull applications, it is useful mainly for deburring applications on stainless steel, rubber, plastic and composites. It has a threaded eyelet arbor hole for mandrel attachment.

Coverage of Internal Diameters
For internal diameters that require increased coverage over a cross pad, our Standard Abrasives™ Silicon Carbide Overlap Disc is a good option. The overlapping construction makes the disc flexible so that the operator can push it into a hole or tube and achieve full contact with internal diameters. Discs with four layers achieve abrasive action in both push and pull directions.

Sharp, Fast Cut and Fine Finish
Silicon carbide is a very hard and sharp mineral commonly used for low-pressure applications such as paint prep and the final stages of whitewood sanding. While it may have a shorter life than aluminum oxide, it produces a finer finish and should be used where the best possible finish is desired.

Mineral Performance Comparison
For internal diameters that require increased coverage over a cross pad, our Standard Abrasives™ Silicon Carbide Overlap Disc is a good option

For internal diameters that require increased coverage over a cross pad, our Standard Abrasives™ Silicon Carbide Overlap Disc is a good option

Standard Abrasives™ Silicon Carbide Overlap Disc

Mandrel runs through wheel reducing chatter and operator fatigue

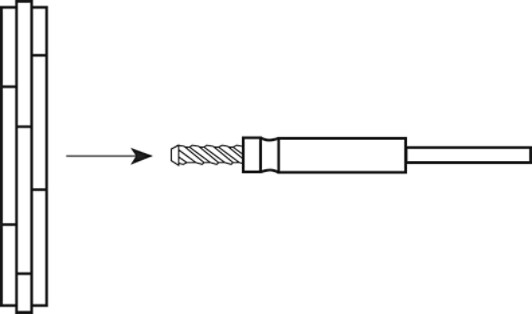

Running an Overlap Disc
For the convenience of tool-free disc changes, our overlap discs have a threaded eyelet arbor hole that screws onto a mandrel and is secured by hand with an attachment bolt (both available separately). A shorter mandrel allows for a steadier application, while a mandrel with extended reach allows access deeper into pipe interiors. Compatible threaded Standard Abrasives™ Mandrels are available separately with thread sizes of 8-32, 3-48, and 1/4-20. An extended version is available with 8-32 threads.

Quality Standard Abrasives™ Solutions for Industrial Applications
The Standard Abrasives™ brand has supplied quality abrasives to the metalworking industry for over 50 years. Customers rely on our broad offering of high performance products including coated, bonded, and non-woven abrasive lines.

Learn more about Metalworking solutions (PDF, 2.9 Mb).
