3M™ Sample Development Design Kits for High Speed Cabling and Connectors, 94XX Series

  • 3M ID B10507733

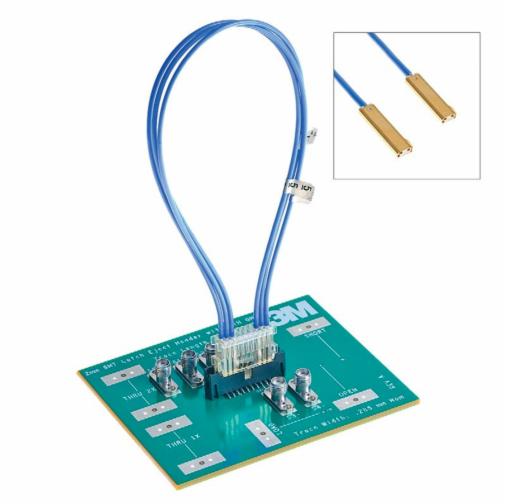

9401-9404 2 MM SCI Design Kits

SCI Cable Assemblies and Board Mount Latch/Eject Headers

Headers, See TS-2199

View more details
Frequently viewed resources
Tech Data Sheet (PDF, 1MB)

spinner


Details

Highlights
  • 9401-9404 2 MM SCI Design Kits
  • SCI Cable Assemblies and Board Mount Latch/Eject Headers
  • Headers, See TS-2199
  • SCI Cable Assemblies, See TS-2105
  • Purpose
  • Assist designers in evaluating signal integrity performance of 3M SCI cable assemblies
  • Eye Patterns
  • Crosstalk (Near end & Far end)
  • Attenuation
  • Support component engineers in technical specification development
  • For more information, refer to Data Sheet TS2298 (TS-2298)

Sample Development Design Kits

Typical properties
