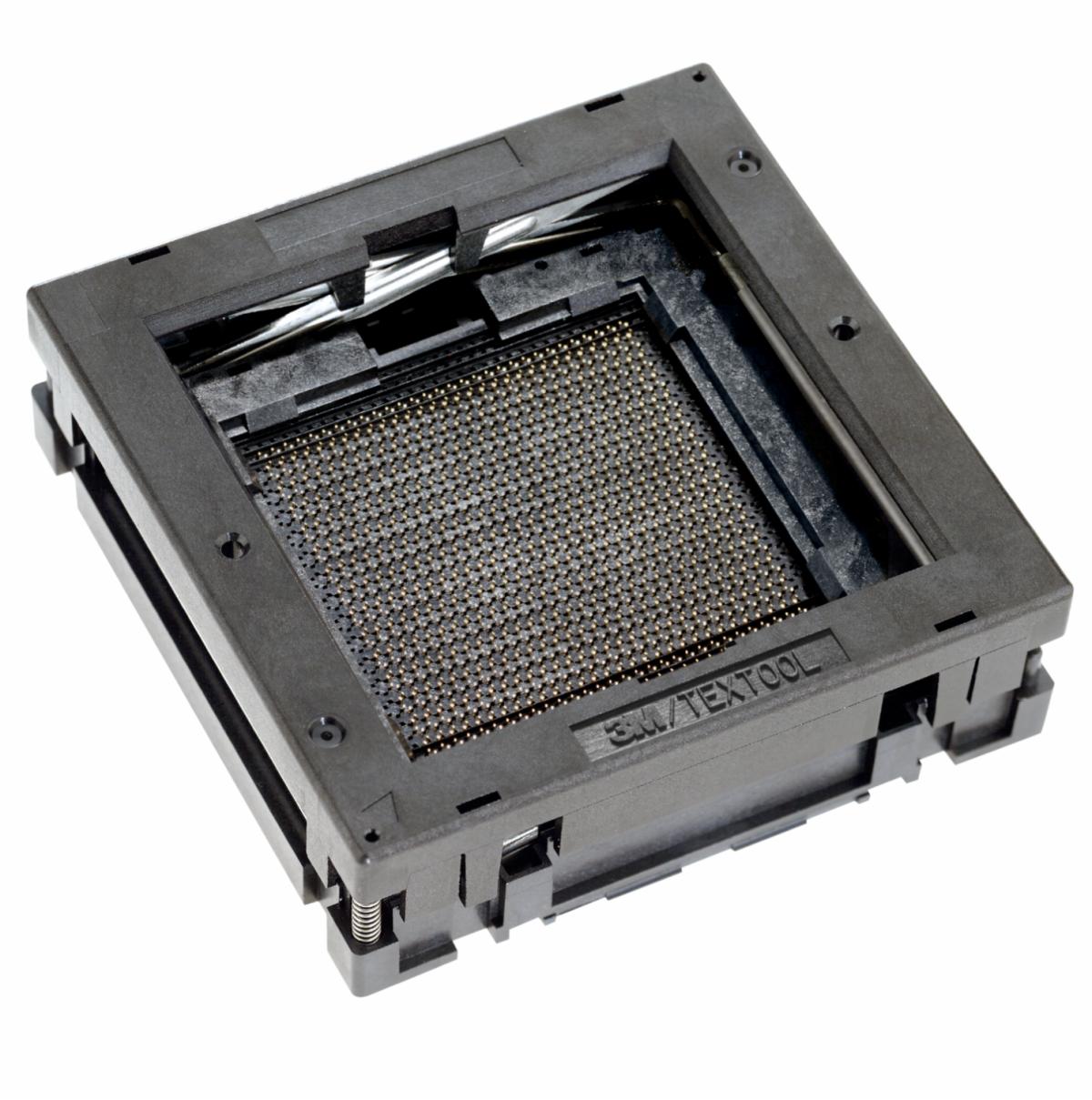

3M™ Textool™ Test & Burn-In Ball Grid Array Sockets 92XX Series

3M ID B10398184
UPC 50051135275288,00076308972745,00076308603823,50051135159410,00076308609931,00076308708122,00051135159415,00076308971298,00076308973520,00051135275283,00076308627027,00051138699505

Double-beam normally-closed contact delivers balanced, opposing forces to solder ball with minimal shear stress

Contact tips touch ball above its center plane moving ball deformation away from seating plane

Designed to allow excellent air flow around device

Double-beam normally-closed contact delivers balanced, opposing forces to solder ball with minimal shear stress
Contact tips touch ball above its center plane moving ball deformation away from seating plane
Designed to allow excellent air flow around device
Includes a retractable locating guide for easy board mounting even with hundreds of leads
Compatible with most robotic handlers
Helps provide easy manual operation
See Regulatory Information Appendix (last page of Tech Data Sheet) for chemical compliance information
For more information refer to Data Sheet TS9200 (TS-9200)

1.27 mm pitch Sockets, Types II, III
