3M™ Electrically Conductive Adhesive Transfer Tape 9719

  • Part Number 9719
  • 3M ID B10179639

Silicone version of Tape 9713

Isotropic XYZ-axis electrical connectivity

Performs well at elevated temperatures for short periods (up to 400 Degree F [204 Degree C])

View more details
Frequently viewed resources

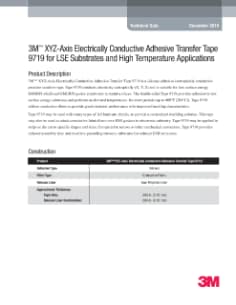

PDF (1) Copy 26Tech Data Sheet (PDF, 179KB)

Details

Highlights
  • Silicone version of Tape 9713
  • Isotropic XYZ-axis electrical connectivity
  • Performs well at elevated temperatures for short periods (up to 400 Degree F [204 Degree C])
  • Improved adhesion on LSE materials versus Tape 9713 (Such as silicone based EMI gaskets, etc)
  • Lower R non-woven conductive scrim vs. 9712
  • Can be applied in strips or die cut to specific shapes & sizes

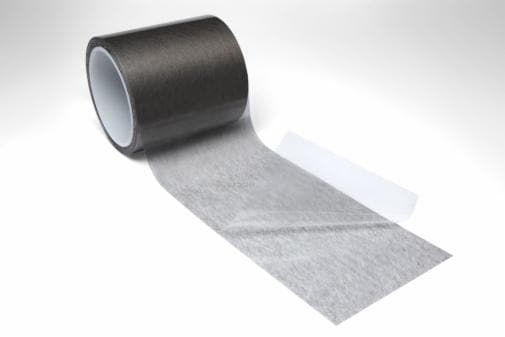

3M™ Electrically Conductive Adhesive Transfer Tape 9719 is an XYZ-axis electrically conductive silicone pressure sensitive adhesive (CPSA) tape. This double-sided tape has a conductive nickel coated carbon scrim carrier. Designed for EMI shielding and grounding applications, enabling devices to meet electromagnetic compatibility requirements.

3M™ Electrically Conductive Adhesive Transfer Tape 9719 has a silicone conductive pressure sensitive adhesive (CPSA) specifically designed to attach to low surface energy materials such as silicone-based products. This tape performs at elevated temperatures for short periods (up to 400°F [204°C]). The conductive fibers provide improved material handling. This tape provides robust protection against EMI in a range of market segments such as automotive, aerospace & defense, consumer electronics, medical devices, and communication infrastructure.


Recommended Applications:
PCB/flex/chassis grounding
Low surface energy attachment
Electrostatic discharge (ESD)
EMI shield & gasket attachment


From simple to complex designs, our family of shielding and grounding solutions provides protection against EMI. Our solutions provide excellent adhesion to a variety of substrates including metals and plastics. These tapes are easy to apply using low pressure without heat, enhancing productivity. We have multiple thicknesses available to meet even the most space constrained and complex design requirements.

Typical properties

Resources

Connect with us. We’re here to help.

Need help finding the right product for your project? Contact us if you need product, technical or application advice or want to collaborate with a 3M technical specialist
  • All fields are required unless indicated optional

  • 3M takes your privacy seriously. 3M and its authorized third parties will use the information you provided in accordance with our Privacy Policy to send you communications which may include promotions, product information and service offers. Please be aware that this information may be stored on a server located in the U.S. If you do not consent to this use of your personal information, please do not use this system.

  • Submit

Our apologies...

An error has occurred while submitting. Please try again later...

Thank you!

Your form was submitted successfully

Similar products

Adhesive Type Silicone
Application Grounding
Product Usage Printed Circuit Boards, Chassis
Total Tape Thickness without Liner (Imperial) 4 mil
Total Tape Thickness without Liner (Metric) 0.1 mm
