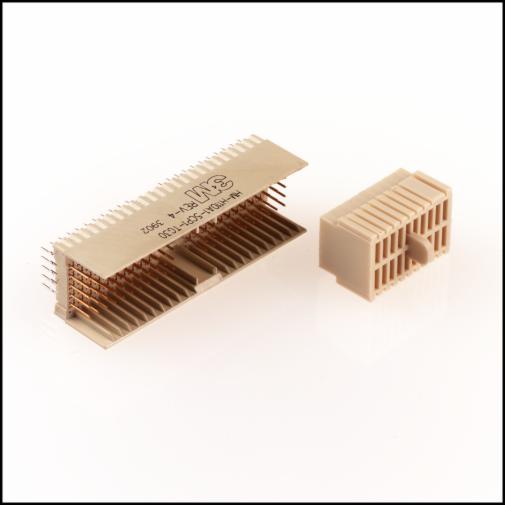

3M™ MetPak™ HM Header, HM Series

  • Modular/scalable format IEC 61076-4-101
  • Press-fit or solder tail version
  • 63 mated lines per linear inch
  • Multi-purpose center (MPC) for keying and guidance
 More...
View all details
Find A Part
spinner
Typical Properties
Attribute Name
Value
Tech Sheet Number
TS-2005
Details
  • Modular/scalable format IEC 61076-4-101
  • Press-fit or solder tail version
  • 63 mated lines per linear inch
  • Multi-purpose center (MPC) for keying and guidance
  • Ships with protective cap, which also serves as an insertion tool
  • End-to-end stackable with 5 row 3M™ MetPak™ CP2, HM and HSHM products
  • See Regulatory Information Appendix (last page of Tech Data Sheet) for chemical compliance information
  • For more information, refer to Data Sheet TS2005 (TS-2005)

2 mm Type A, 110/154 Contacts, 5 Rows, Straight
