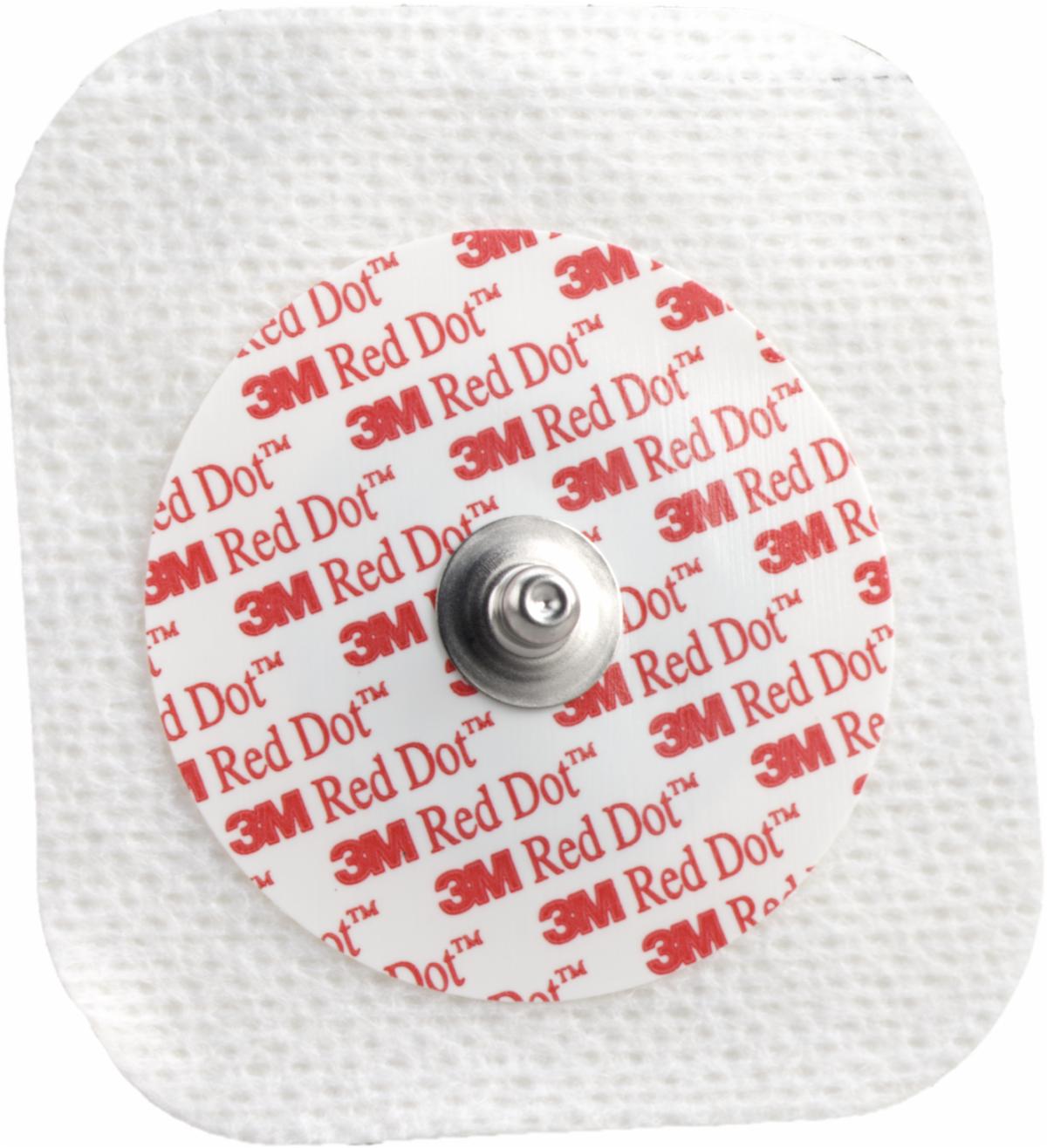

3M™ Red Dot™ Diaphoretic Soft Cloth Monitoring Electrode

3M ID 7100212808UPC 10707387788862
  • Solid gel conforms to the skin quickly allowing high quality, uninterrupted traces
  • The gel's low chloride content minimizes skin irritation for increased patient comfort
  • Use of built-in abrader disc improves trace quality for better results (on 2271 models only)
  • 3M adhesive provides greater adhesion to diaphoretic skin, which results in better trace quality
 More...
View all details
Specifications
Attribute Name
Value
Brand
Red Dot™
Case Packaging
50 Electrodes/Bag; 20 Bags or 1000 Electrodes/Case
Clinical Area
Critical Care, Emergency Medical Services (EMS), Emergency Room, Intensive Care, Pediatric, Physician Office, Surgery
Department
Cardiac Rehab, Cath Lab, ICU/CCU
Electrode Size
2.2" x 2"
Electrode Type
Diaphoretic, Fluid Resistant, Monitoring
Gel Type
Solid
Material
Soft Cloth
Model
2231
Monitoring Event
Echo-Cardio, Stress Test, Telemetry/Holter/Event
Package Contents
50 Electrodes/Bulk Bag
Patient
Adult
Product Type
Electrode
Product Use
Diaphoretic, Monitoring
Radiolucency
Radiopaque
Skin Prep Included
No
Skin Type
Diaphoretic, Normal
Wear Time
Up to Three Days
Product Details
  • Solid gel conforms to the skin quickly allowing high quality, uninterrupted traces
  • The gel's low chloride content minimizes skin irritation for increased patient comfort
  • Use of built-in abrader disc improves trace quality for better results (on 2271 models only)
  • 3M adhesive provides greater adhesion to diaphoretic skin, which results in better trace quality
  • Provides good performance for up to 30 days out of the bag
  • Clinically proven to stay adhered to skin that becomes diaphoretic

The diaphoretic patient's skin presents a challenge in maintaining reliable contact for a quality ECG trace. 3M's soft cloth backing choices provide patient comfort with its conformability and low profile features.

This monitoring electrode is a high performance soft cloth backed electrode designed specifically for stress test, telemetry, Holter and Coronary Care monitoring procedures. Its excellent performance provides long term adhesion on both dry and moist skin.  Our low chloride solid gels provide excellent trace quality, combined with low skin irritation. This monitoring electrode is a high performance soft cloth backed electrode designed specifically for stress test, telemetry, Holter and Coronary Care monitoring procedures. Its excellent performance provides long term adhesion on both dry and moist skin. Our low chloride solid gels provide excellent trace quality, combined with low skin irritation.

Suggested Applications

  • General ECG monitoring situations where skin moisture is an issue
  • For use in ICU/CCU, Stress, Cardiac Rehab, Telemetry, and Holter Monitoring departments
