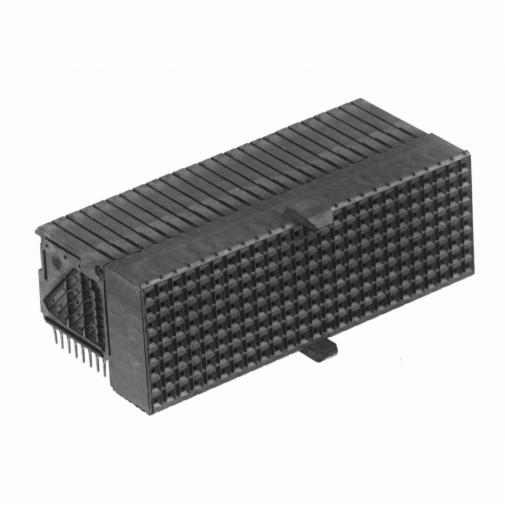

3M™ HSHM Press-Fit Power Socket, HSHM Series

  • Up to 5 Gbps data rates
  • Low crosstalk at high frequencies
  • 50/100 Ohm (single-ended/differential) impedance
  • Modular/scalable format IEC 61076-4-101
 More...
View all details
Find A Part
spinner
Specifications
Attribute Name
Value
Tech Sheet Number
TS-2635
Details
  • Up to 5 Gbps data rates
  • Low crosstalk at high frequencies
  • 50/100 Ohm (single-ended/differential) impedance
  • Modular/scalable format IEC 61076-4-101
  • 101 mated lines per linear inch
  • Mates with 3M HSHM Headers
  • Dual beam contact construction for high reliability
  • End-to-end stackable with 8-row 3M™ HM and HSHM Sockets
  • See Regulatory Information Appendix for chemical compliance information
  • For more information refer to Customer Drawing 78-5100-2635-0

2 mm, Types D, DE, E, FL, FR; 8 Rows, Right Angle
