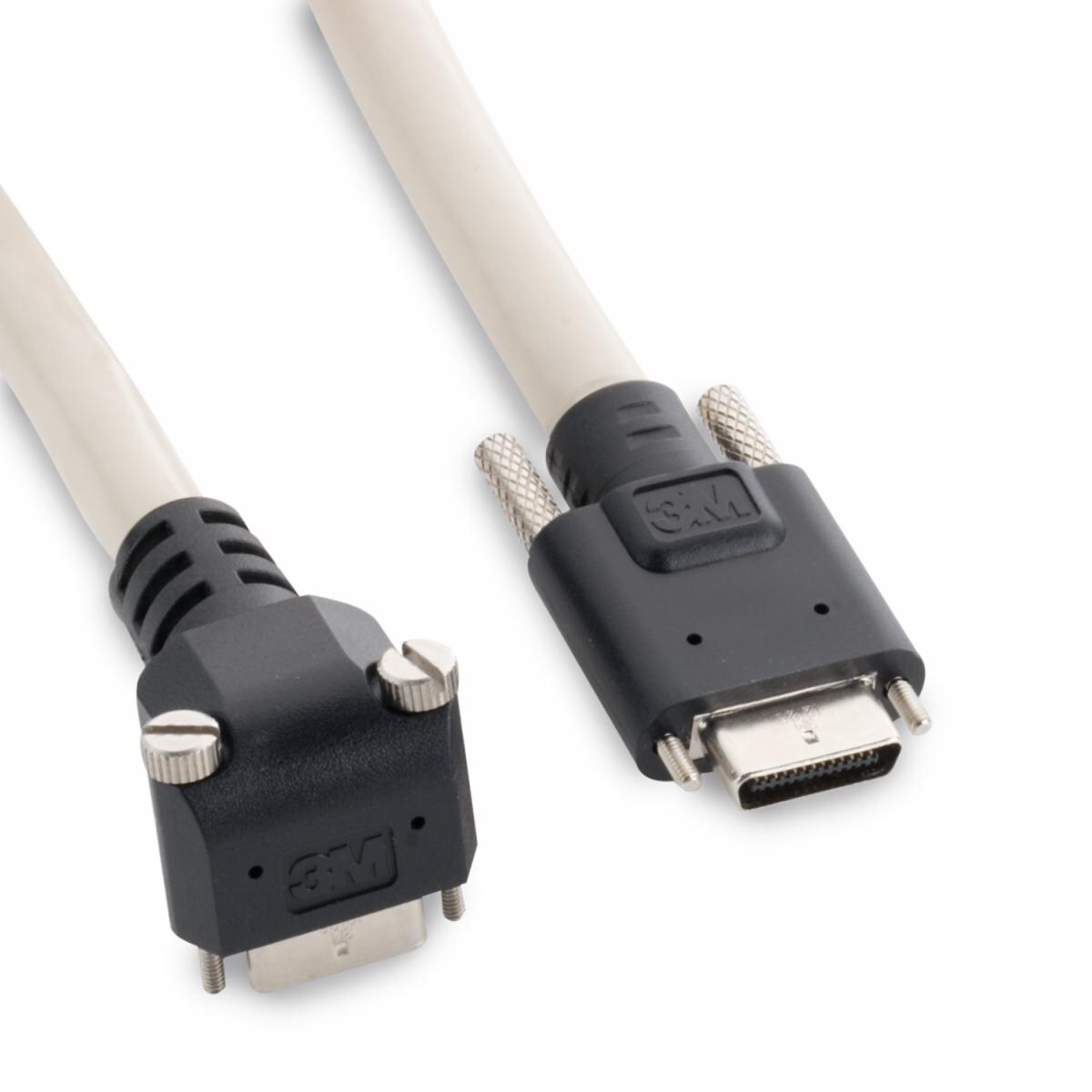

3M™ Shrunk Delta Ribbon (SDR) Cable Assembly, 1SF26-L1XX-00C-XXX

  • 3M ID B00035675
  • UPC 00051111657928,54547452533799,54548623606229,54547452533775,00051111657959,04547452533800,54547452533782,04547452533824,04547452498529,04548623606224,54548623466892,04547452533770,04548623466897,04547452533794,04548623466866,54548623466861,04547452533787,54547452533829,54547452498524,54547452533805

Supports AIA Industrial Camera Link(R) Standard for Mini C/L camera to frame grabber applications

11 shielded, twisted twinax pairs with four drain wires

Double overall shield with inner foil and outer braid

View more details
Frequently viewed resources
Tech Data Sheet (PDF, 1MB)

spinner


Typical properties

Details

Highlights
  • Supports AIA Industrial Camera Link(R) Standard for Mini C/L camera to frame grabber applications
  • 11 shielded, twisted twinax pairs with four drain wires
  • Double overall shield with inner foil and outer braid
  • Rugged ribbon contact type
  • Rugged thumbscrew retention
  • EMI shielded overmolded junction shell
  • Optional R/A overmolded backshells eliminate bend radius
  • See Regulatory Information Appendix (last page of Tech Data Sheet) for chemical compliance information
  • For more information refer to TS2120 (TS-2120)

3M™ Shrunk Delta Ribbon (SDR) Cable Assembly, 1SF26-L1XX-00C-XXX Supports AIA Industrial Camera Link(R) Standard for mini C/L camera to frame grabber applications. Has a double overall shield with inner foil and outer braid and a optional R/A overmolded backshells eliminate bend radius.
