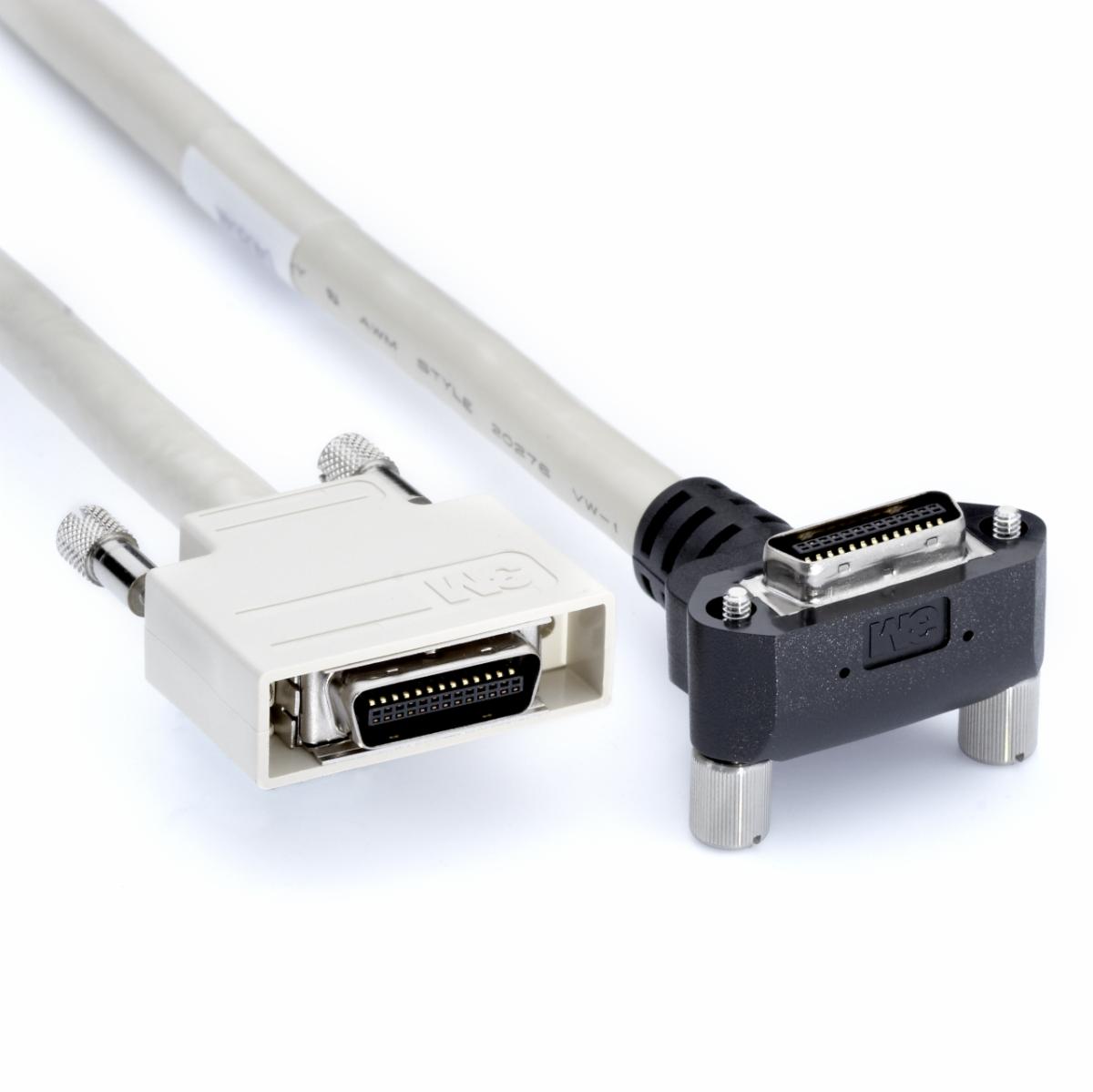

3M™ Shrunk Delta Ribbon (SDR) Cable Assembly, 1MF26-L5XX-00C-XXX

3M ID B00035663
UPC 04547452498642,54547452533621,00051111657690,54547452498661,54548623466953,00051111657768,04547452533626,04547452498666,54547452498647,04548623466958

Supports new AIA Industrial Camera Link(R) Standard for new Mini C/L camera to C/L frame grabber applications

11 shielded, twisted twinax pairs with four drain wires

Double overall shield with inner foil and outer braid

Frequently viewed resources

Typical properties

Details

Highlights

Supports new AIA Industrial Camera Link(R) Standard for new Mini C/L camera to C/L frame grabber applications
11 shielded, twisted twinax pairs with four drain wires
Double overall shield with inner foil and outer braid
Rugged ribbon contact type
Rugged thumbscrew retention
R/A overmolded MDR backshells eliminate bend radius issues
See Regulatory Information Appendix (last page of Tech Data Sheet) for chemical compliance information
For more information refer to TS2122 (TS-2122)

3M™ Shrunk Delta Ribbon (SDR) Cable Assembly 1MF26-L5XX-00C-XXX supports new AIA Industrial Camera Link® Standard for new Mini C/L camera to C/L frame grabber applications. Has 11 shielded, twisted twinax pairs with four drain wires and double overall shield with inner foil and outer braid. Offers right angle overmolded MDR backshells which eliminate bend radius issues.
