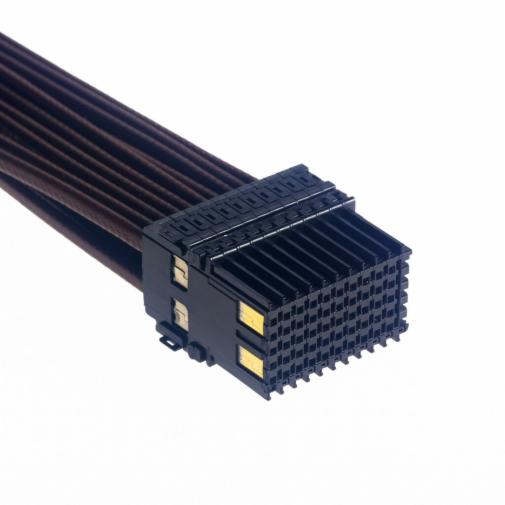

3M™ Ultra Hard Metric (UHM) High-Performance Cable Assembly, UHM Series

  • 3M ID B00035395

Mates with Hard Metric/Compact PCI(R) IEC 61076-4-101 backplane connectors, UHM headers, HSHM headers

Hard Metric 2 mm x 2 mm grid spacing

Fully-shielded coaxial or twin axial interface

View more details
Frequently viewed resources
Tech Data Sheet (PDF, 1MB)

spinner


Details

Highlights
  • Mates with Hard Metric/Compact PCI(R) IEC 61076-4-101 backplane connectors, UHM headers, HSHM headers
  • Hard Metric 2 mm x 2 mm grid spacing
  • Fully-shielded coaxial or twin axial interface
  • Standard or custom wafer stacks
  • Range of high-performance cable - 50 Ohm, 75 Ohm coax, 85 Ohm, 100 Ohm twin axial
  • Power wafer
  • Semi-rigid stacking system reduces insertion force
  • Mix-and-match custom options
  • For more information, refer to Data Sheet TS2364 (TS-2364)

2 mm 5x1 Column Stacked Wafers for Coax or Twin Axial Cable, Power
