Attribute Name
|
Value
|
|---|---|
|
Brand
|
Scotchcast™
|
|
Conductor Size Range
|
10-2 AWG
|
|
Conductor Sizes for 5 kV
|
2 AWG
|
|
Insulation O.D. Range
|
0.406 - 0.750 Inch
|
|
Material
|
Epoxy
|
|
Maximum Cable Outside Diameter
|
0.60 in
|
|
Maximum Cable Outside Diameter (Metric)
|
15.2 mm
|
|
Product Color
|
Black
|
|
Product Series
|
82-A Series
|
|
Product Technology
|
Resin
|
|
Product Type
|
Splice
|
|
RoHS 2011/65/EU Compliant
|
Yes
|
|
RoHS EU Comments
|
RoHS 2011/65/EU compliant without exemption
*Important RoHS information |
|
Splice Type
|
Inline
|
|
Voltage
|
5 kV
|
3M™ 82-AN Series Inline Resin Power Cable Splice Kit is designed to insulate and seal 5kV rated unshielded, single conductor cables and 1 kV rated multiple conductor cables. It is suitable for use in weather exposed or direct burial locations.

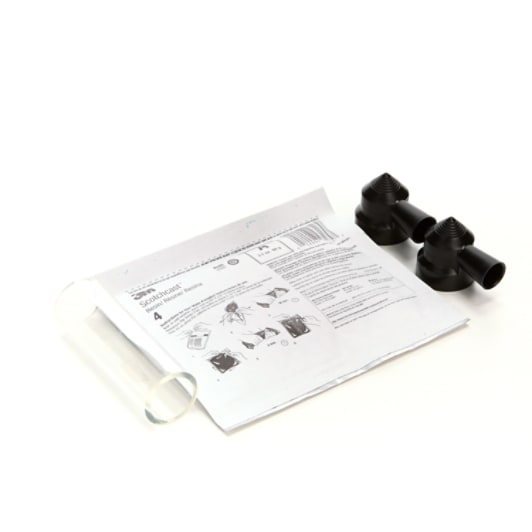

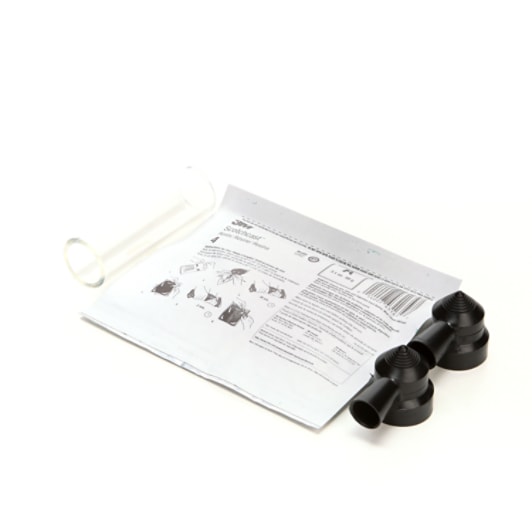

3M™ 82-AN Series Inline Resin Power Cable Splice Kit includes a mold body, pouring spouts, 23 electrical tape and No. 4 resin. It is perfect for splicing non shielded wet or dry cables and single conductor or multiple conductor portable cables. UL Listed and RoHS 2011/65/EU Compliant.
